VS3506AE - P-Channel 30V MOSFET

VS3506AE Description

VS3506AE-VB VS3506AE-VB Datasheet P-Channel 30 V (D-S) MOSFET www.VBsemi.com VDS RDS(on),typ VGS=10V RDS(on),typ VGS=4.5V ID -30 V 11 mΩ 18 mΩ -45.

VS3506AE Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* Low Thermal Resistance PowerPAK® Package with Small Size and Low 1.07 mm Profile
* 100 % Rg and UIS Tested
* Compliant to RoHS Directive 2002/95/EC DFN 3x3 EP Top View Bottom

VS3506AE Applications

* Load Switch
* Adaptor Switch
* Notebook PC S Top View 1 8 2 7 3 6 4 5 G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS VGS - 30 V ± 20 TC = 25 °C -

📥 Download Datasheet

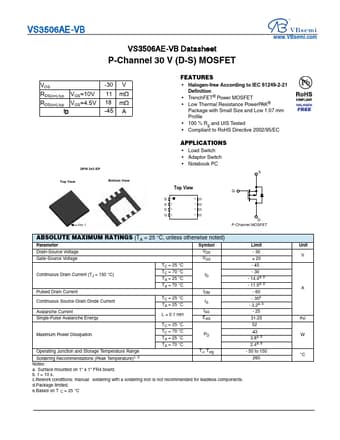

Preview of VS3506AE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3506AE
Manufacturer
VBsemi
File Size
355.84 KB
Datasheet
VS3506AE-VBsemi.pdf
Description
P-Channel 30V MOSFET
