VS3503AP

P-Channel Advanced Power MOSFET

VS3503AP Features

* P-Channel，-5V Logic Level Control

* Low on-resistance RDS(on) @ VGS=-4.5 V

* Fast Switching

* Enhancement mode

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VS3503AP -30V/-120A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS

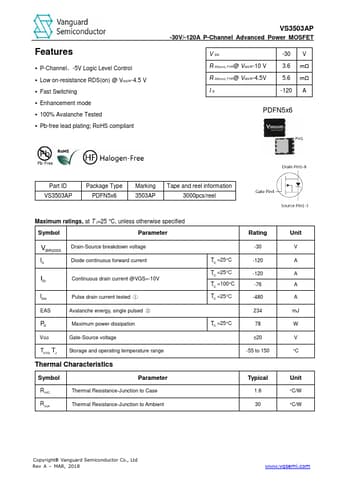

VS3503AP Datasheet (574.92 KB)

Preview of VS3503AP PDF

Datasheet Details

Part number:

VS3503AP

Manufacturer:

Vanguard Semiconductor

File Size:

574.92 KB

Description:

P-channel advanced power mosfet.
