VS3504AD

P-Channel Advanced Power MOSFET

VS3504AD Features

* P-Channel,-5V Logic Level Control

* Low on-resistance RDS(on) @ VGS=-4.5 V

* Fast Switching

* Enhancement mode

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VS3504AD -30V/-115A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS

VS3504AD Datasheet (550.35 KB)

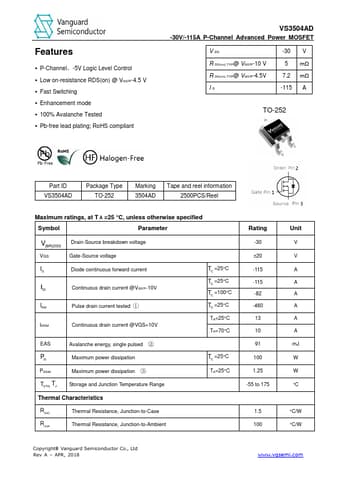

Preview of VS3504AD PDF

Datasheet Details

Part number:

VS3504AD

Manufacturer:

Vanguard Semiconductor

File Size:

550.35 KB

Description:

P-channel advanced power mosfet.
