VS3504AS

P-Channel Advanced Power MOSFET

VS3504AS Features

* P-Channel,-5V Logic Level Control

* Enhancement mode

* Low on-resistance RDS(on) @ VGS=-4.5 V

* 100% Avalanche test

* Pb-free lead plating; RoHS compliant VS3504AS -30V/-20A P-Channel Advanced Power MOSFET V DS -30 V R @DS(on),TYP VGS=-10 V 5 mΩ R @DS(on),TYP VGS=-4.5 V 7

VS3504AS Datasheet (478.29 KB)

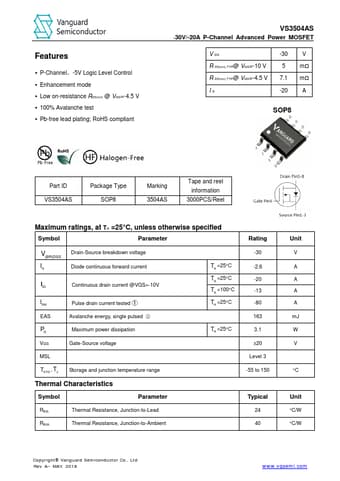

Preview of VS3504AS PDF

Datasheet Details

Part number:

VS3504AS

Manufacturer:

Vanguard Semiconductor

File Size:

478.29 KB

Description:

P-channel advanced power mosfet.
