VS3503AT

P-Channel Advanced Power MOSFET

VS3503AT Features

* P-Channel,-5V Logic Level Control

* Enhancement mode

* Low on-resistance RDS(on) @ VGS=-4.5 V

* Fast Switching and High efficiency

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VS3503AT -30V/-160A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10

VS3503AT Datasheet (669.27 KB)

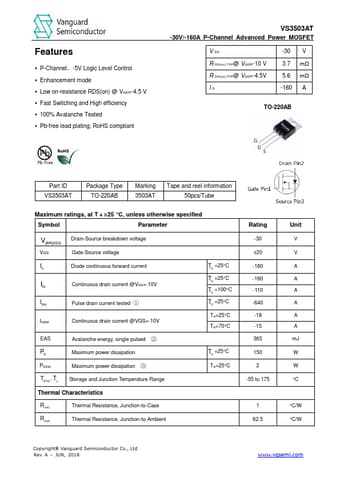

Preview of VS3503AT PDF

Datasheet Details

Part number:

VS3503AT

Manufacturer:

Vanguard Semiconductor

File Size:

669.27 KB

Description:

P-channel advanced power mosfet.
