VS3503AD - P-Channel Advanced Power MOSFET

VS3503AD Description

.

VS3503AD Features

* P-Channel，-5V Logic Level Control
* Low on-resistance RDS(on) @ VGS=-4.5 V
* Fast Switching
* Enhancement mode
* 100% Avalanche Tested
* Pb-free lead plating; RoHS compliant VS3503AD -30V/-130A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS

📥 Download Datasheet

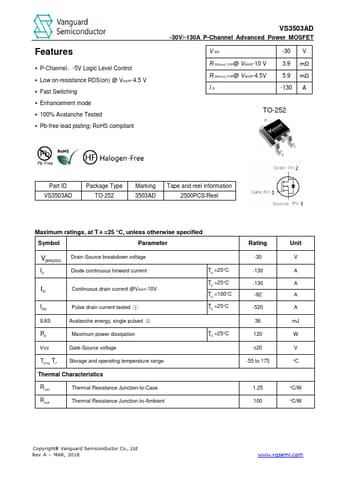

Preview of VS3503AD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3503AD
Manufacturer
Vanguard Semiconductor
File Size
561.90 KB
Datasheet
VS3503AD-VanguardSemiconductor.pdf
Description
P-Channel Advanced Power MOSFET
