VS3518AS - P-Channel Advanced Power MOSFET

VS3518AS Description

.

VS3518AS Features

* P-Channel，-5V Logic Level Control
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=-4.5 V
* 100% Avalanche test
* Pb-free lead plating; RoHS compliant VS3518AS -30V/-10A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.5 V ID -30 18 31.5

📥 Download Datasheet

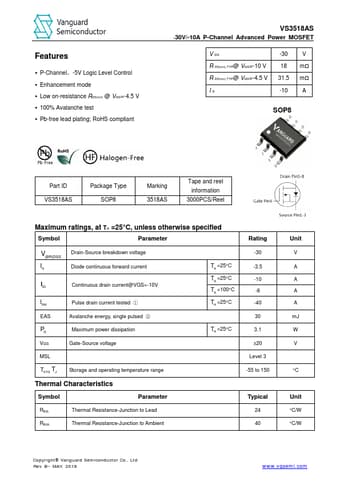

Preview of VS3518AS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3518AS
Manufacturer
Vanguard Semiconductor
File Size
467.67 KB
Datasheet
VS3518AS-VanguardSemiconductor.pdf
Description
P-Channel Advanced Power MOSFET
