VS3618AS N-Channel Advanced Power MOSFET

VS3618AS Description

.

VS3618AS Features

* N-Channel，5V Logic Level Control
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=4.5 V
* 100% Avalanche test
* Pb-free lead plating; RoHS compliant VS3618AS 30V/16A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 6.6 mΩ 9.6 mΩ

📥 Download Datasheet

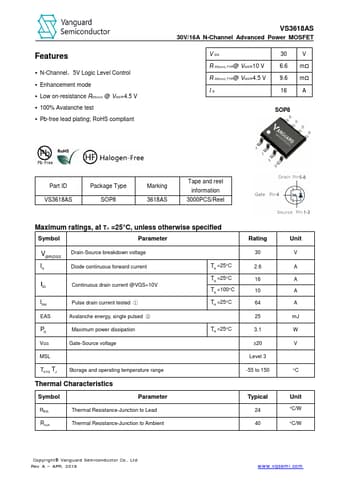

Preview of VS3618AS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3618AS
Manufacturer
Vanguard Semiconductor
File Size
519.80 KB
Datasheet
VS3618AS-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
