VS1602GTH - 100V/130A N-Channel Advanced Power MOSFET

Datasheet Summary

Features

  • Enhancement mode.
  • Low RDS(on) to minimize conduction losses.
  • VitoMOS® Ⅱ Technology.
  • 100% Avalanche Tested, Rg 100% Tested VS1602GTH 100V/130A N-Channel Advanced Power MOSFET V DS R @ DS(on),TYP VGS=10 V I D(Wire bond limited) 100 V 3.6 mΩ 130 A TO-220AB Part ID VS1602GTH Package Type TO-220AB Marking 1602GTH Packing 50pcs/Tube Maximum ratings, at TA =25°C, unless otherwise specified Symbol Parameter Rating V(BR)DSS Drain-Source breakdown voltage 100 VGS IS ID.

📥 Download Datasheet

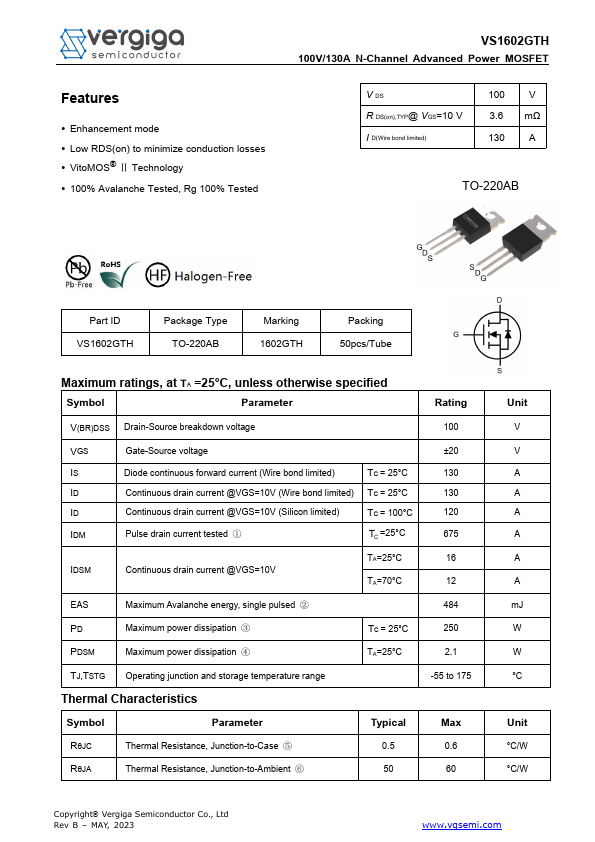

Datasheet preview – VS1602GTH

Datasheet Details

Part number VS1602GTH
Manufacturer Vergiga
File Size 968.60 KB
Description 100V/130A N-Channel Advanced Power MOSFET
Datasheet download datasheet VS1602GTH Datasheet

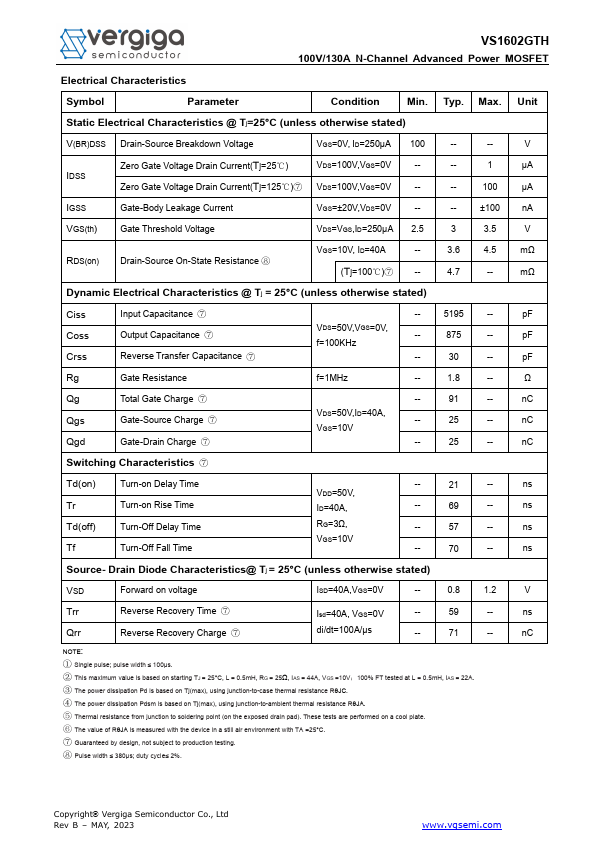

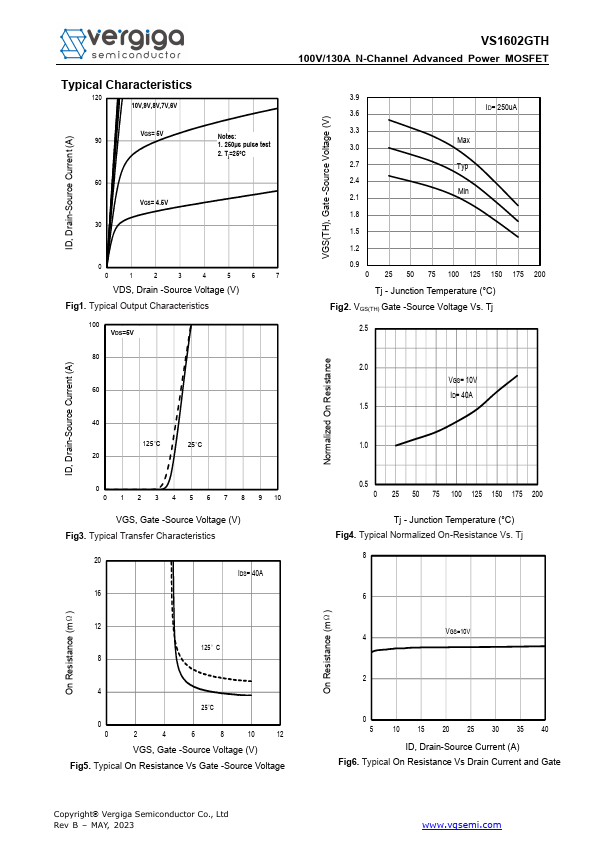

Additional preview pages of the VS1602GTH datasheet.

📁 Similar Datasheet

  • VS1 - AC-DC / Configurable (Emerson)
  • VS1 - Micro Vibration Sensor (Sensolute)
  • VS100 - HDBaseT Transmitter / Receiver (Valens)
  • VS1000 - Audio Module (VLSI)
  • VS1000 - Ogg Vorbis Player (VLSI)
  • VS1000 - Single axis analog accelerometer (SAFRAN)
  • VS1001k - MPEG AUDIO CODEC (VLSI)
  • VS1002d - MP3 AUDIO CODEC (VLSI)
  • VS1003 - MP3/WMA AUDIO CODEC (VLSI)
  • VS1003B - 16/32-Button Player (VLSI)
Other Datasheets by Vergiga
  • VS1602GMH - 100V/130A N-Channel Advanced Power MOSFET
  • VS1696GKH - 100V/270A N-Channel Advanced Power MOSFET
  • VS1850GE - 100V/7.4A N-Channel Advanced Power MOSFET
  • VS1891GMH - 100V/195A N-Channel Advanced Power MOSFET

Full PDF Text Transcription

Click to expand full text
Features  Enhancement mode  Low RDS(on) to minimize conduction losses  VitoMOS® Ⅱ Technology  100% Avalanche Tested, Rg 100% Tested VS1602GTH 100V/130A N-Channel Advanced Power MOSFET V DS R @ DS(on),TYP VGS=10 V I D(Wire bond limited) 100 V 3.
