VS1850GE - 100V/7.4A N-Channel Advanced Power MOSFET

Datasheet Summary

Features

  • Enhancement mode.
  • VitoMOS® Ⅱ Technology.
  • 100% Avalanche Tested,100% Rg Tested VS1850GE 100V/7.4A N-Channel Advanced Power MOSFET V DS R @ DS(on),TYP VGS=10 V R @ DS(on),TYP VGS=4.5 V I D(Silicon Limited) 100 V 100 mΩ 140 mΩ 7.4 A PDFN3333 Part ID VS1850GE Package Type PDFN3333 Marking 1850GE Packing 5000PCS/Reel Maximum ratings, at TA =25°C, unless otherwise specified Symbol Parameter V(BR)DSS VGS IS ID ID IDM Drain-Source breakdown voltage Gate-Source voltage Di.

📥 Download Datasheet

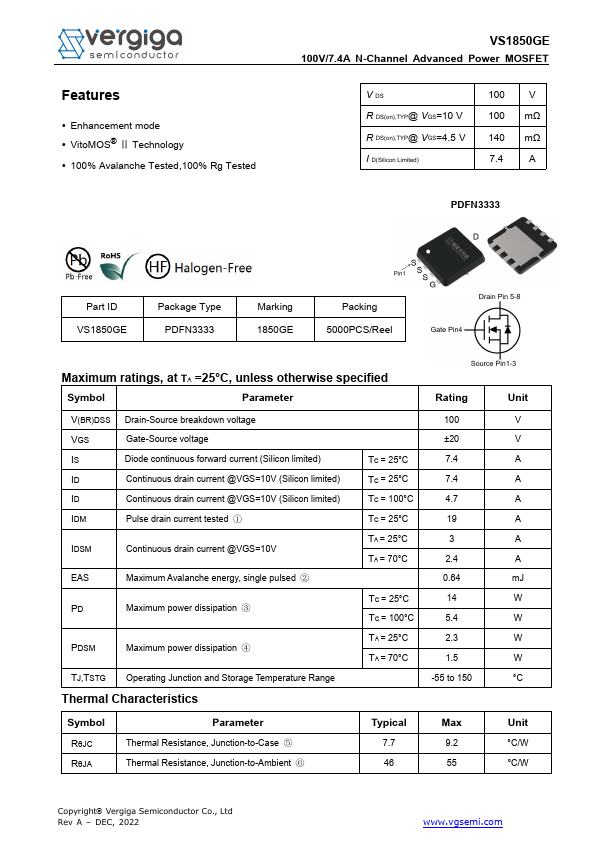

Datasheet preview – VS1850GE

Datasheet Details

Part number VS1850GE
Manufacturer Vergiga
File Size 930.19 KB
Description 100V/7.4A N-Channel Advanced Power MOSFET
Datasheet download datasheet VS1850GE Datasheet

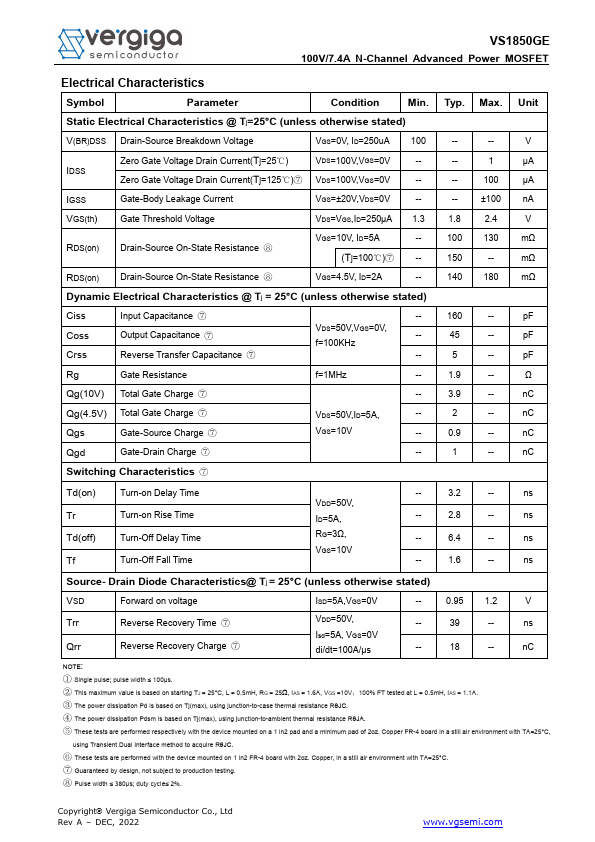

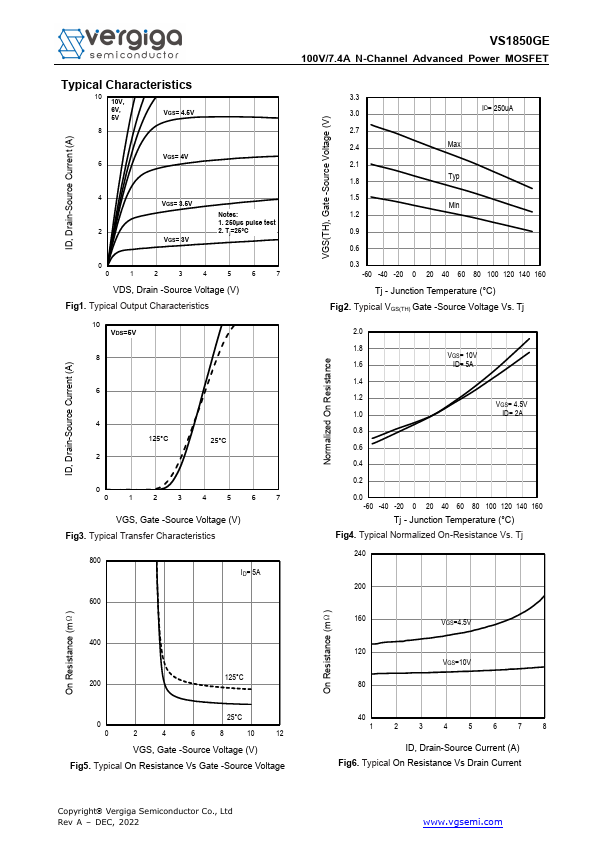

Additional preview pages of the VS1850GE datasheet.

📁 Similar Datasheet

  • VS1838 - Infrared Receiver Module (LEN)
  • VS1838B - Infrared Receiver (ETC)
  • VS1838B - Infrared Receiver (LFN)
  • VS18VUA1LAM - Transient Voltage Suppressor (ROHM)
  • VS1 - AC-DC / Configurable (Emerson)
  • VS1 - Micro Vibration Sensor (Sensolute)
  • VS100 - HDBaseT Transmitter / Receiver (Valens)
  • VS1000 - Audio Module (VLSI)
  • VS1000 - Ogg Vorbis Player (VLSI)
  • VS1000 - Single axis analog accelerometer (SAFRAN)
Other Datasheets by Vergiga
  • VS1891GMH - 100V/195A N-Channel Advanced Power MOSFET
  • VS1602GMH - 100V/130A N-Channel Advanced Power MOSFET
  • VS1602GTH - 100V/130A N-Channel Advanced Power MOSFET
  • VS1696GKH - 100V/270A N-Channel Advanced Power MOSFET

Full PDF Text Transcription

Click to expand full text
Features  Enhancement mode  VitoMOS® Ⅱ Technology  100% Avalanche Tested,100% Rg Tested VS1850GE 100V/7.4A N-Channel Advanced Power MOSFET V DS R @ DS(on),TYP VGS=10 V R @ DS(on),TYP VGS=4.5 V I D(Silicon Limited) 100 V 100 mΩ 140 mΩ 7.
