VS1696GKH - 100V/270A N-Channel Advanced Power MOSFET

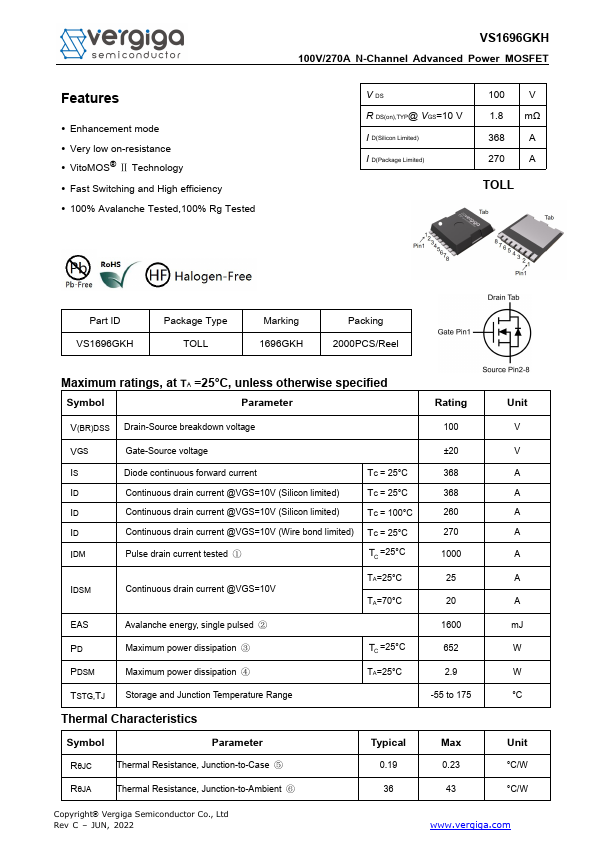

The VS1696GKH by Vergiga is a 100V/270A N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VS1696GKH
Manufacturer	Vergiga
File Size	1.25 MB
Description	100V/270A N-Channel Advanced Power MOSFET
Datasheet	VS1696GKH-Vergiga.pdf

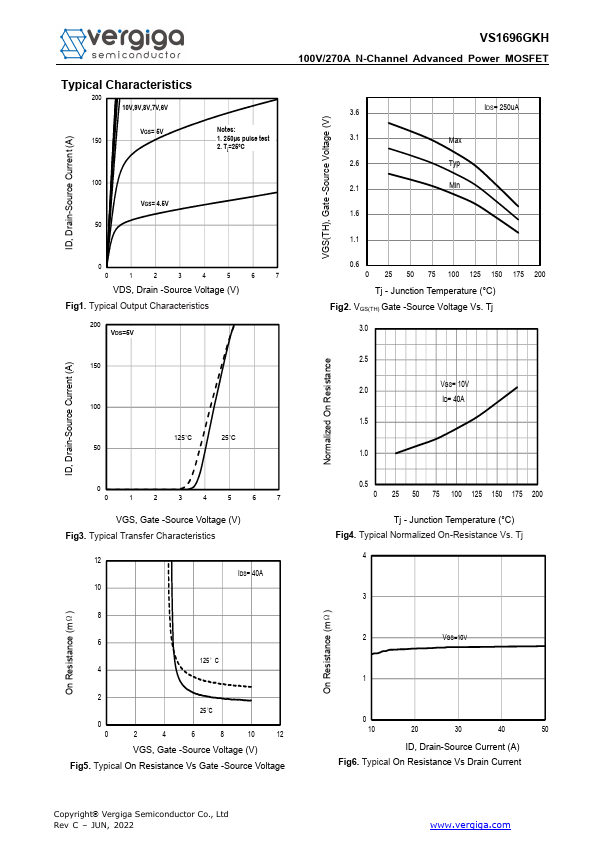

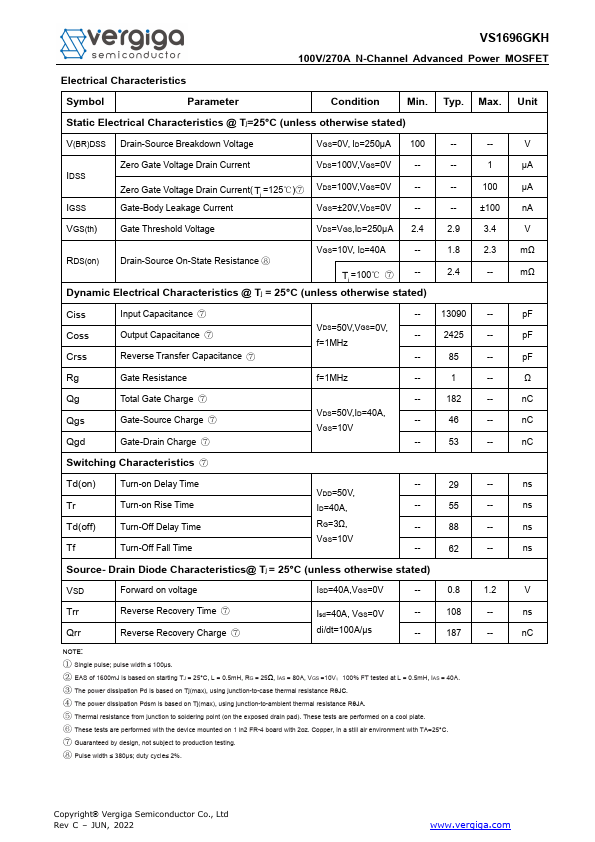

Additional preview pages of the VS1696GKH datasheet.

Enhancement mode.
Very low on-resistance.
VitoMOS® Ⅱ Technology.
Fast Switching and High efficiency.
100% Avalanche Tested,100% Rg Tested.
VS1696GKH 100V/270A N-Channel Advanced Power MOSFET V DS R @ DS(on),TYP VGS=10 V I D(Silicon Limited) I D(Package Limited) 100 V 1.8 mΩ 368 A 270 A TOLL Part ID VS1696GKH Package Type TOLL Marking 1696GKH Packing 2000PCS/Reel Maximum ratings, at TA =25°C, unless otherwise specified Symbol Parameter Rating Unit V(BR).
