IRFR224

Power MOSFET

IRFR224 Features

* Dynamic dV/dt Rating

* Repetitive Avalanche Rated

* Surface Mount (IRFR224, SiHFR224)

* Straight Lead (IRFU224, SiHFU224)

* Available in Tape and Reel

* Fast Switching

* Ease of Paralleling

* Material categorization: For definitions o

IRFR224 General Description

Third generation power MOSFETs form Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave solderig techniques. The straight lead versi.

IRFR224 Datasheet (353.02 KB)

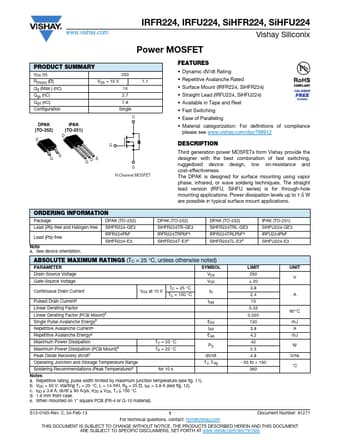

Preview of IRFR224 PDF

Datasheet Details

Part number:

IRFR224

Manufacturer:

Vishay ↗ Siliconix

File Size:

353.02 KB

Description:

Power mosfet.
www.vishay.com IRFR224, IRFU224, SiHFR224, SiHFU224 Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) Qgs (nC) Qgd .
