IRFR220N, IRFU220N Datasheet - International Rectifier

IRFR220N Power MOSFET

SMPS MOSFET PD- 95063A IRFR220NPbF IRFU220NPbF HEXFET® Power MOSFET Applications l High frequency DC-DC converters l Lead-Free VDSS RDS(on) max (mΩ) ID 200V 600 5.0A Benefits l Low Gate to Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current D-Pak IRFR22ON I-Pak IRFU220N Absolute Maximum Ratings ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VG.

IRFU220N_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRFR220N, IRFU220N. Please refer to the document for exact specifications by model.

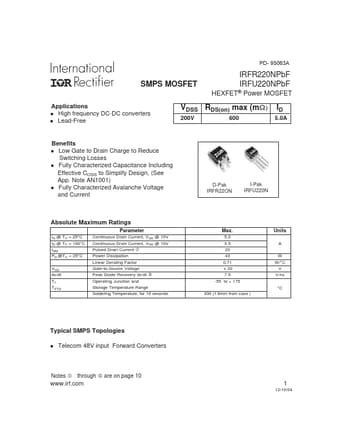

IRFR220N Datasheet Preview Page 2 IRFR220N Datasheet Preview Page 3

Datasheet Details

Part number:

IRFR220N, IRFU220N

Manufacturer:

International Rectifier

File Size:

230.85 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRFR220N, IRFU220N.
Please refer to the document for exact specifications by model.
