MBR20H35CT Dual Schottky Barrier Rectifier

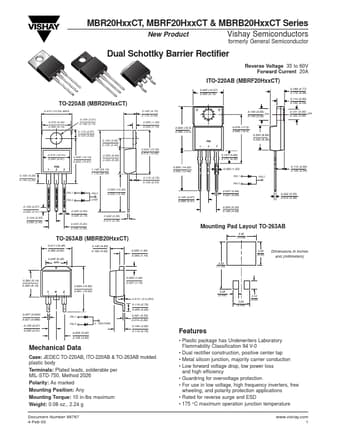

MBR20HxxCT, MBRF20HxxCT & MBRB20HxxCT Series New Product Vishay Semiconductors formerly General Semiconductor Dual Schottky Barrier Rectifier Reverse Voltage 35 to 60V Forward Current 20A ITO-220AB (MBRF20HxxCT) 0.405 (10.27) 0.383 (9.72) 0.188 (4.77) 0.172 (4.36) 0.110 (2.80) 0.100 (2.54) 0.185 (4.70) 0.175 (4.44) 0.154 (3.91) 0.370 (9.40) 0.360 (9.14) 0.148 (3.74) 0.113 (2.87) 0.103 (2.62) 0.145 (3.68) 0.135 (3.43) 0.410 (10.41) 0.390 (9.91) 1 0.160 (4.06) 0.140 (3.56) PIN 2 3 0.603 (15.32).

MBR20H35CT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94 V-0

* Dual rectifier construction, positive center tap

* Metal silicon junction, majority carrier conduction

* Low forward voltage drop, low power loss and high efficiency

* Guardring
