MBR20H150CTG, MBRF20H150CTG, Power Rectifier

Switch-mode Power Rectifier 150 V, 20 A MBRF20H150CTG, MBR20H150CTG .

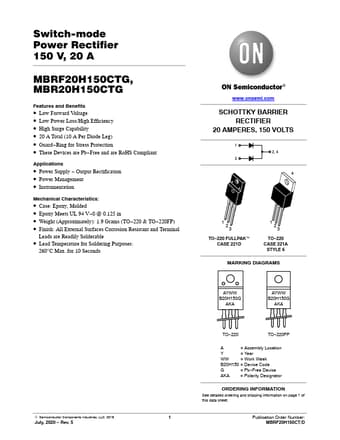

datasheet Preview Page 1 from Datasheet4u.com

MBRF20H150CTG-ONSemiconductor.pdf

MBR20H150CTG Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR20H150CTG, MBRF20H150CTG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR20H150CTG, MBRF20H150CTG

Manufacturer:

ON Semiconductor ↗

File Size:

177.72 KB

Description:

Power Rectifier

Note:

This datasheet PDF includes multiple part numbers: MBR20H150CTG, MBRF20H150CTG.
Please refer to the document for exact specifications by model.

Features

* Low Forward Voltage
* Low Power Loss/High Efficiency
* High Surge Capability
* 20 A Total (10 A Per Diode Leg)
* Guard
* Ring for Stress Protection
* These Devices are Pb

Applications

* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Characteristics:
* Case: Epoxy, Molded
* Epoxy Meets UL 94 V
* 0 @ 0.125 in
* Weight (Approximately): 1.9 Grams (TO
* 220 & TO
* 220FP)
