MBR20H100CTG - SWITCHMODE Power Rectifier

MBR20H100CTG Description

MBR20H100CTG, MBRB20H100CTG, MBRF20H100CTG, NRVBB20H100CTT4G Switch-mode Power Rectifier 100 V, 20 A .

MBR20H100CTG Features

* Low Forward Voltage: 0.64 V @ 125°C
* Low Power Loss/High Efficiency
* High Surge Capacity
* 175°C Operating Junction Temperature
* 20 A Total (10 A Per Diode Leg)
* Guard
* Ring for Stress Protection
* NRVBB Prefix for Automotive and O

MBR20H100CTG Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free and are RoHS Compliant Applications
* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Cha

📥 Download Datasheet

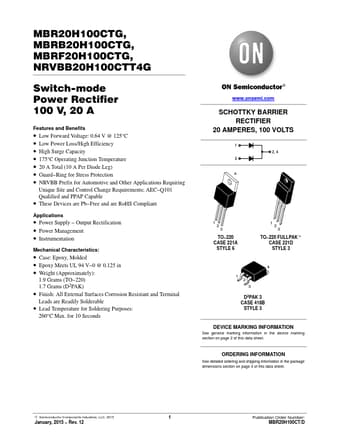

Preview of MBR20H100CTG PDF
datasheet Preview Page 2 datasheet Preview Page 3
