SUB75N06-12L Datasheet - Vishay Siliconix

SUB75N06-12L N-Channel MOSFET

www.DataSheet4U.com SUP/SUB75N06-12L Vishay Siliconix N-Channel 60-V (D-S), 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 60 rDS(on) (W) 0.012 @ VGS = 10 V 0.014 @ VGS = 4.5 V ID (A) 75 70 D TO-220AB TO-263 G DRAIN connected to TAB G G D S Top View SUP75N06-12L SUB75N06-12L N-Channel MOSFET D S Top View S ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Avalanche Current .

SUB75N06-12L Datasheet (97.28 KB)

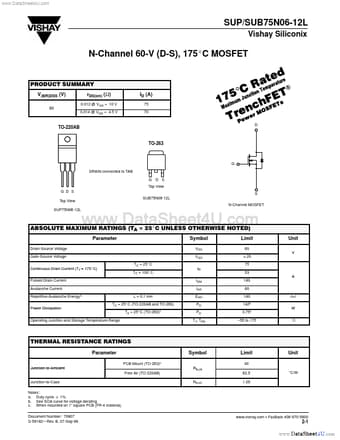

Preview of SUB75N06-12L PDF

Datasheet Details

Part number:

SUB75N06-12L

Manufacturer:

Vishay ↗ Siliconix

File Size:

97.28 KB

Description:

N-channel mosfet.
