1N4151WS - Small Signal Fast Switching Diode

Datasheet Summary

Features

  • Silicon epitaxial planar diode Available.
  • Fast switching diodes (trr ≤ 4 ns).
  • AEC-Q101 qualified available.
  • Molding compound meets UL 94 V-0 flammability rating.
  • Moisture sensitivity level (MSL) 1.
  • Base P/N-E3 - RoHS-compliant, commercial grade.
  • Base P/N-HE3_A - RoHS-compliant, AEC-Q101 qualified.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 PARTS TABLE PART.

📥 Download Datasheet

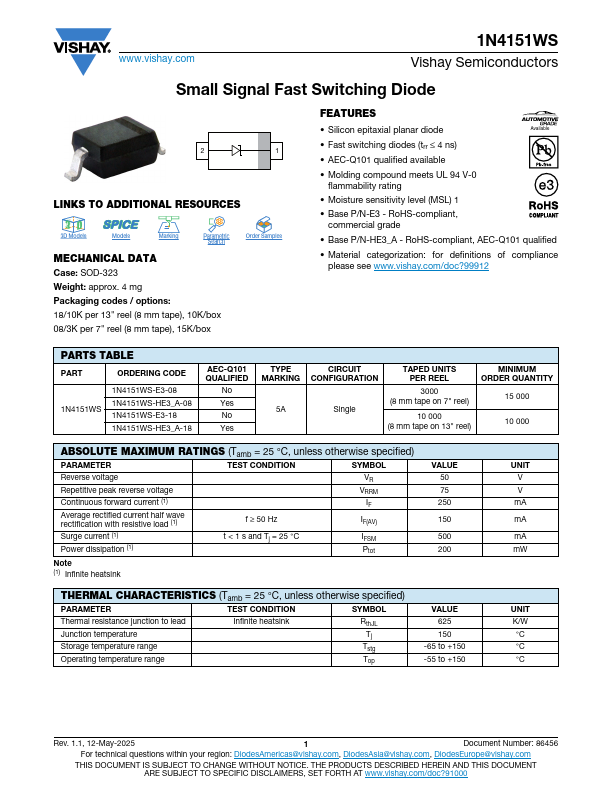

Datasheet preview – 1N4151WS

Datasheet Details

Part number 1N4151WS
Manufacturer Vishay
File Size 120.18 KB
Description Small Signal Fast Switching Diode
Datasheet download datasheet 1N4151WS Datasheet
Additional preview pages of the 1N4151WS datasheet.
