DG2592 Audio Jack Detector

DG2592 Description

www.vishay.com DG2592 Vishay Siliconix Audio Jack Detector with Send / End Detect .
The DG2592 is an audio jack detector and pop noise control switch IC.

DG2592 Features

* Wide operating voltage range: 1.6 V to 5.5 V
* Low quiescent current of 10 μA, max. at VDD = 1.8 V
* Integrated sense co

📥 Download Datasheet

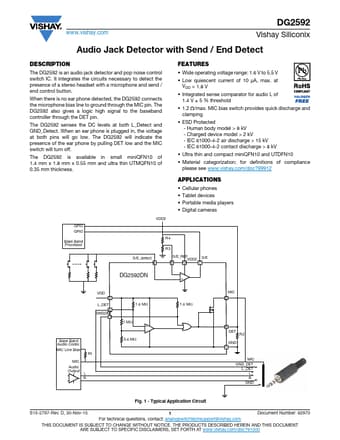

Preview of DG2592 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DG2592
Manufacturer
Vishay ↗
File Size
184.74 KB
Datasheet
DG2592-Vishay.pdf
Description
Audio Jack Detector
