DG2501 - Quad SPST Analog Switches

Vishay

DG2501 Datasheet Preview — Preview of DG2501 PDF

Datasheet Details

Part number	DG2501
Manufacturer	Vishay ↗
File Size	195.68 KB
Description	Quad SPST Analog Switches
Datasheet	DG2501-Vishay.pdf

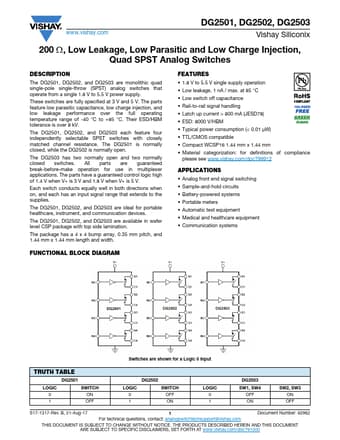

DG2501 Product details

Description

The DG2501, DG2502, and DG2503 are monolithic quad single-pole single-throw (SPST) analog switches that operate from a single 1.8 V to 5.5 V power supply.

Features

1.8 V to 5.5 V single supply operation.
Low leakage, 1 nA / max. at 85 °C.
Low switch off capacitance.
Rail-to-rail signal handling.
Latch up current > 800 mA (JESD78).
ESD: 8000 V/HBM.
Typical power consumption (< 0.01 μW).
TTL/CMOS compatible.
Compact WCSP16 1.44 mm x 1.44 mm.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
