DG2502 Datasheet, Switches, Vishay

DG2502 Features

  • Switches
  • 1.8 V to 5.5 V single supply operation
  • Low leakage, 1 nA / max. at 85 °C
  • Low switch off capacitance
  • Rail-to-rail signal handling
  • Latch

PDF File Details

Part number:

DG2502

Manufacturer:

Vishay ↗

File Size:

195.68kb

Download:

📄 Datasheet

Description:

Quad spst analog switches. The DG2501, DG2502, and DG2503 are monolithic quad single-pole single-throw (SPST) analog switches that operate from a single 1.8 V t

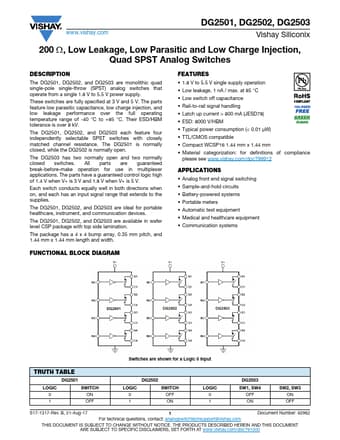

Datasheet Preview: DG2502 📥 Download PDF (195.68kb)
Page 2 of DG2502 Page 3 of DG2502

DG2502 Application

  • Applications The parts have a guaranteed control logic high of 1.4 V when V+ is 3 V and 1.8 V when V+ is 5 V. Each switch conducts equally well in
