DG2518, DG2517 Datasheet - Vishay Siliconix

DG2518 Dual SPDT Analog Switch

The DG2517, DG2518 are low-voltage dual single-pole/ double-throw monolithic CMOS analog switches. Designed to operate from 1.8 V to 5.5 V power supply, the DG2517, DG2518 achieves a bandwidth of 242 MHz while providing low on-resistance (3 Ω), excellent on-resistance matching (0.2 Ω) and flatness (.

DG2518 Features

* 1.8 V to 5.5 V single supply operation

* Low RON: 3 Ω at 4.2 V

* 242 MHz, - 3 dB bandwidth

* Low off-isolation, - 51 dB at 10 MHz

* + 1.6 V logic compatible BENEFITS

* High linearity

* Low power consumption

* High bandwidth

DG2517_VishaySiliconix.pdf

This datasheet PDF includes multiple part numbers: DG2518, DG2517. Please refer to the document for exact specifications by model.

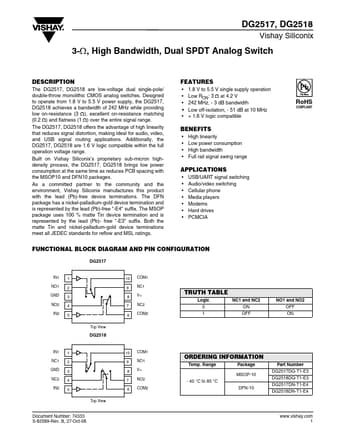

DG2518 Datasheet Preview Page 2 DG2518 Datasheet Preview Page 3

Datasheet Details

Part number:

DG2518, DG2517

Manufacturer:

Vishay ↗ Siliconix

File Size:

181.79 KB

Description:

Dual spdt analog switch.

Note:

This datasheet PDF includes multiple part numbers: DG2518, DG2517.
Please refer to the document for exact specifications by model.
