DG2525

Dual DPDT / Quad SPDT Analog Switch

DG2525 Features

* break-before-make switching and low control logic threshold. The part exhibits high bandwidth and excellent total harmonic distortion (THD). It is ideal for both analog and digital signal switching in space constrain applications requiring high performance and efficient use of board space. The DG252

DG2525 General Description

The DG2525, is a four-channel single-pole double-throw (SPDT) analog switch with two control inputs. It is also known as a two-channel double-pole double-throw (DPDT) configuration. The part is designed to operate from 1.8 V to 5.5 V single power rail. All switches conduct equally well in both direc.

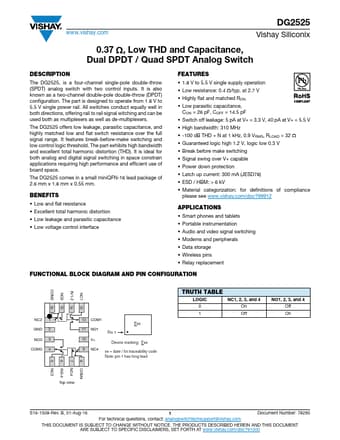

DG2525 Datasheet (175.96 KB)

Preview of DG2525 PDF

Datasheet Details

Part number:

DG2525

Manufacturer:

Vishay ↗

File Size:

175.96 KB

Description:

Dual dpdt / quad spdt analog switch.
