DG2524 Datasheet, Switch, Vishay

DG2524 Features

  • Switch
  • 1.8 V to 5.5 V single supply operation
  • Low resistance: 0.4  / typ. at 2.7 V
  • Highly flat and matched Ron
  • Low parasitic capacitance, Con = 26 pF,

PDF File Details

Part number:

DG2524

Manufacturer:

Vishay ↗

File Size:

154.33kb

Download:

📄 Datasheet

Description:

Dual dpdt / quad spdt analog switch. The DG2523 and DG2524 are four-channel single-pole double-throw (SPDT) analog switches. The DG2523 has two control inputs that each c

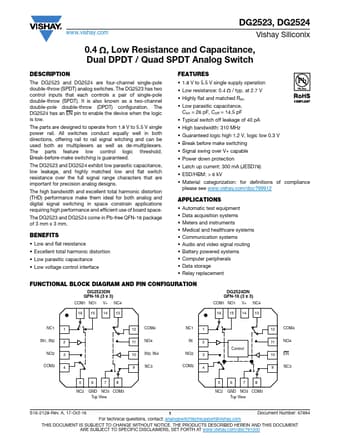

Datasheet Preview: DG2524 📥 Download PDF (154.33kb)
Page 2 of DG2524 Page 3 of DG2524

DG2524 Application

  • Applications requiring high performance and efficient use of board space. The DG2523 and DG2524 come in Pb-free QFN-16 package of 3 mm x 3 mm. BENEF
