IHLE-2020CD-5A - High Current Inductor

Datasheet Summary

Description

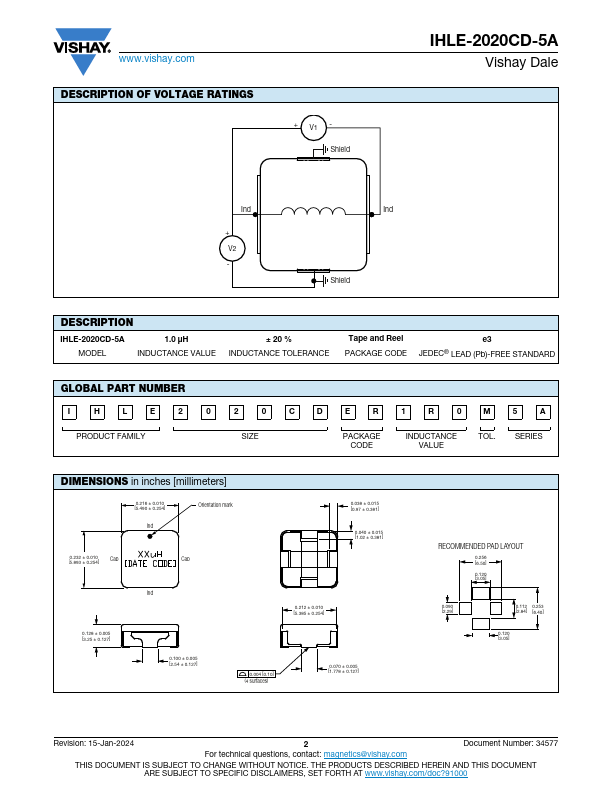

OF VOLTAGE RATINGS + V1 Shield IHLE-2020CD-5A Vishay Dale Ind + V2 - Ind Shield DESCRIPTION IHLE-2020CD-5A 1.0 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE Tape and Reel e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H L E 2 0 2 0 C D E R 1 R

Features

High temperature, continuous operation up to 155 °C.
Patented shielded construction.
Excellent DC/DC energy storage and filter inductor.

Vishay

📥 Download Datasheet

Datasheet Details

Part number	IHLE-2020CD-5A
Manufacturer	Vishay
File Size	731.47 KB
Description	High Current Inductor
Datasheet	IHLE-2020CD-5A Datasheet
Additional preview pages of the IHLE-2020CD-5A datasheet.
