IHLE-4040DDEW-5A Datasheet - Vishay

IHLE-4040DDEW-5A, High Current Inductors

www.vishay.com IHLE-4040DDEW-5A Vishay Dale IHLE® High Current Inductors With E-Field Shield LINKS TO ADDITIONAL RESOURCES Product Page APPLICATION.
IHLE-4040DD-5A 4.

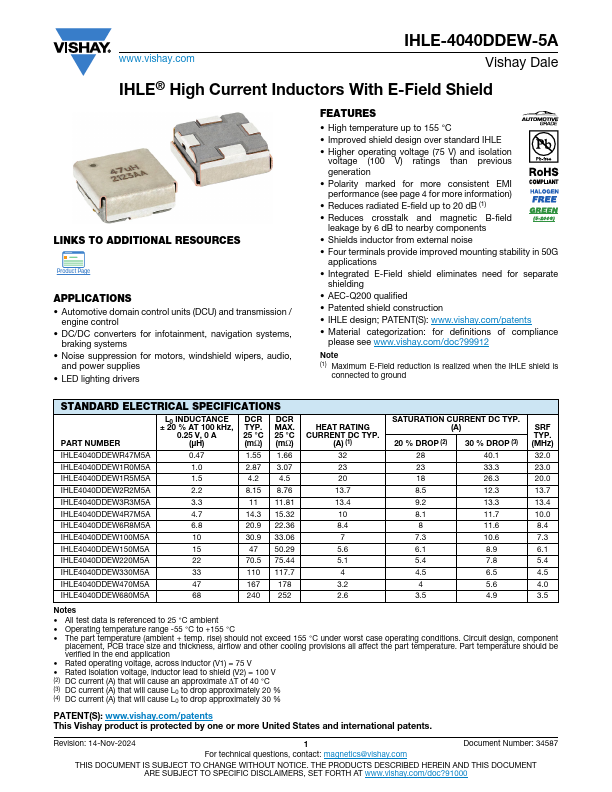

datasheet Preview Page 1 from Datasheet4u.com

IHLE-4040DDEW-5A-Vishay.pdf

IHLE-4040DDEW-5A Datasheet Preview — Preview of IHLE-4040DDEW-5A PDF

Datasheet Details

Part number:

IHLE-4040DDEW-5A

Manufacturer:

Vishay ↗

File Size:

917.01 KB

Description:

High Current Inductors

Features

* High temperature up to 155 °C
* Improved shield design over standard IHLE
* Higher operating voltage (75 V) and isolation voltage (100 V) ratings than previous generation
* Polarity marked for more consistent EMI performance (see page 4 for more information)

Applications

* Automotive domain control units (DCU) and transmission / engine control
* DC/DC converters for infotainment, navigation systems, braking systems
* Noise suppression for motors, windshield wipers, audio, and power supplies
