IHLP-2020CZ-11 Datasheet - Vishay

IHLP-2020CZ-11 Commercial Inductors

IHLP-2020CZ-11 4.7 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE EK PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H L P 2 0 2 0 C Z E K 4 R 7 M 1 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES PACKAGE CODE OPTIONS EK = ta.

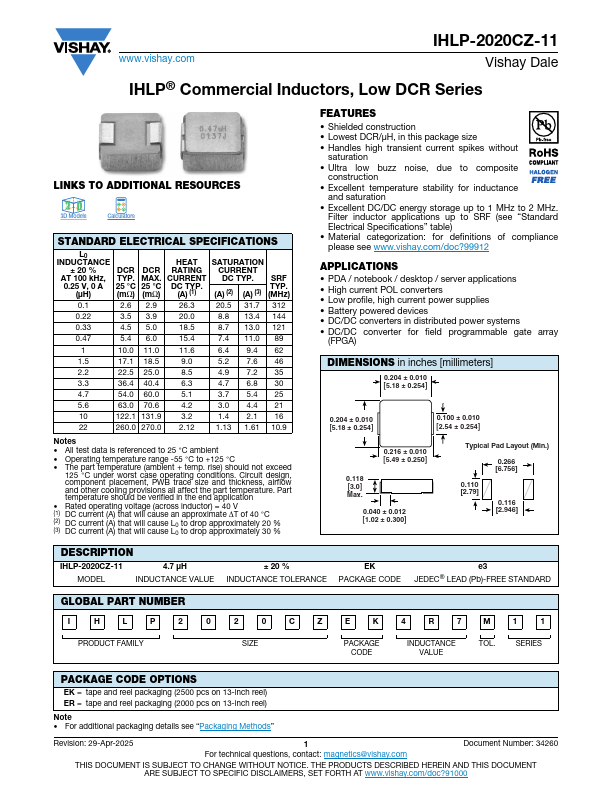

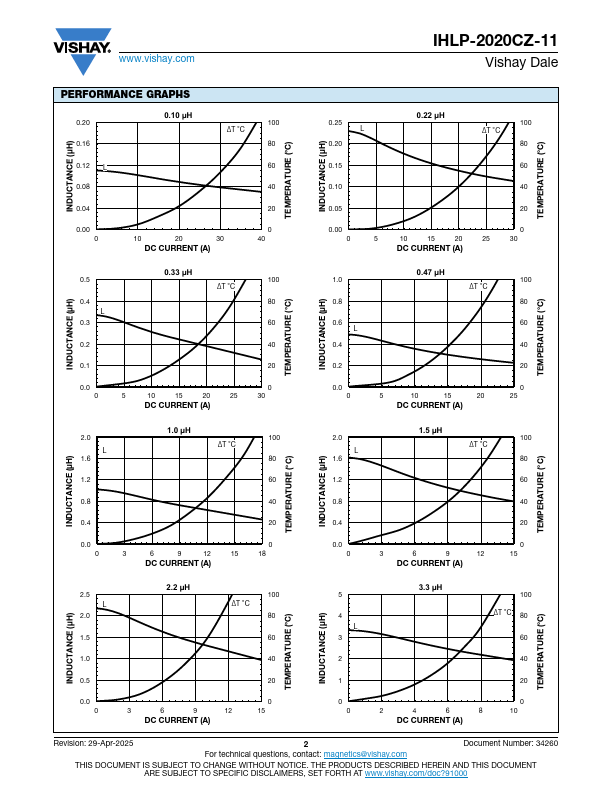

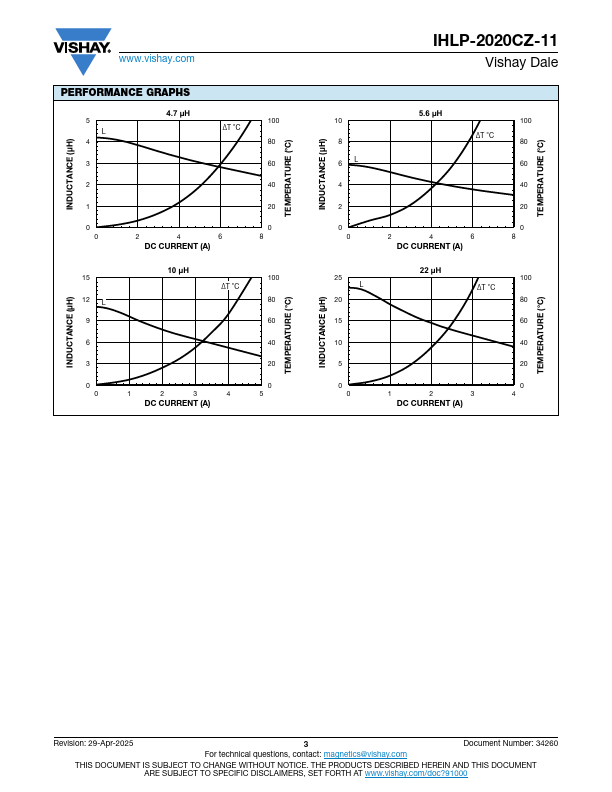

www.vishay.com IHLP-2020CZ-11 Vishay Dale IHLP® Commercial Inductors, Low DCR Series LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Calculators STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT SATURATION ± 20 % DCR DCR RATING CURRENT AT 100 kHz, TYP. MAX. CURRENT DC TYP. SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. TYP. (μH) (mΩ) (mΩ) (A) (1) (A) (2) (A) (3) (MHz) 0.1 2.6 2.9 26.3 20.5 31.7 312 0.22 3.5 3.9 20.0 8.8 13.4 144 0.33 4.5 5.0 18.5 8.7 13.0 121 0.47 5.4 6.0 1.

IHLP-2020CZ-11 Features

* Shielded construction

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

* Ultra low buzz noise, due to composite construction

* Excellent temperature stability for inductance and saturation

* Excellent D

IHLP-2020CZ-11 Datasheet (754.33 KB)
