IHLP-2020CZ-1A Automotive Inductors

IHLP-2020CZ-1A 4.7 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I H L P 2 0 2 0 C Z E R 4 R 7 M 1 A PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES PATENT(S): www.vishay.com/pa.

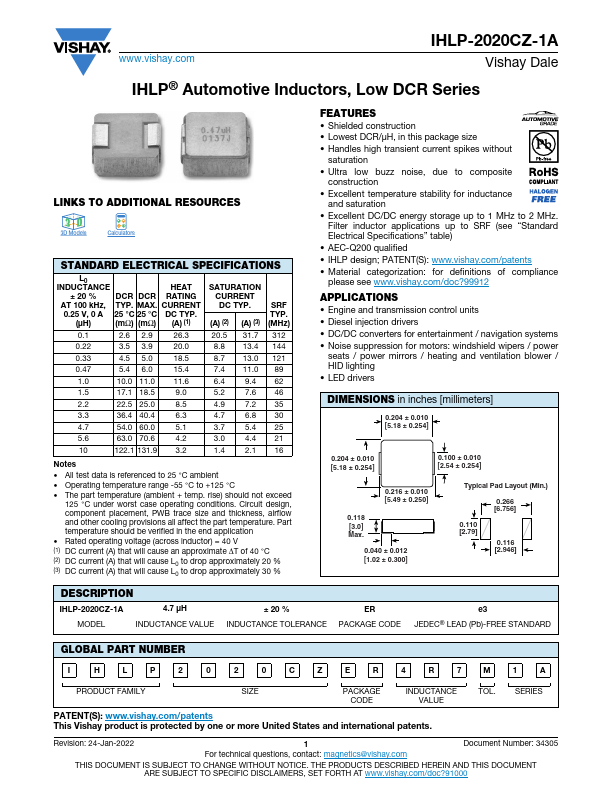

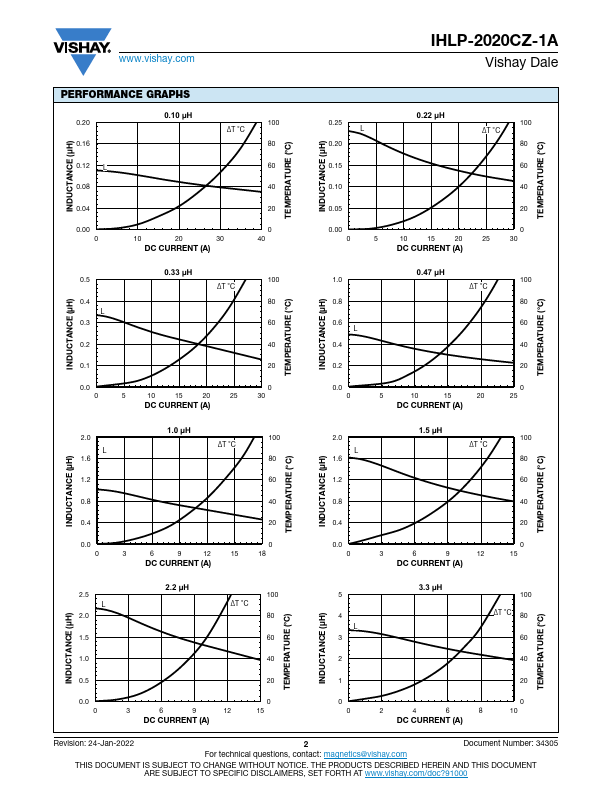

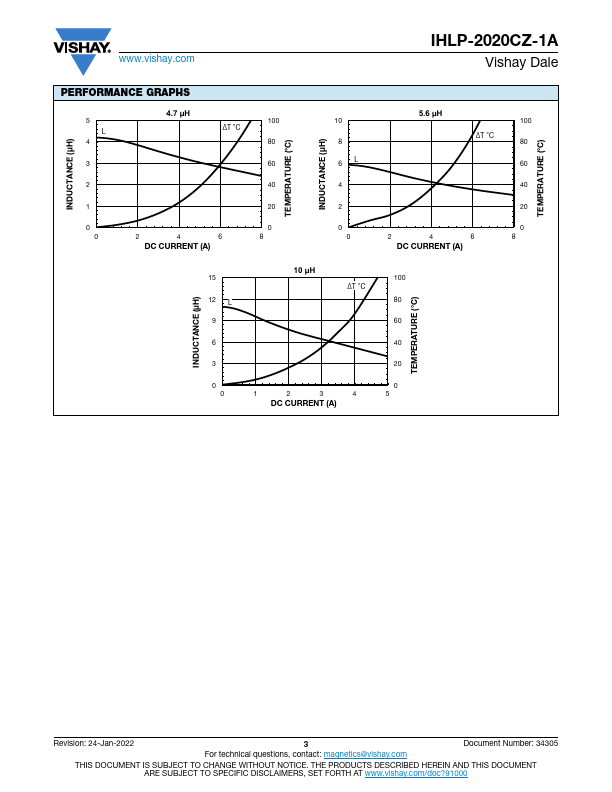

www.vishay.com IHLP-2020CZ-1A Vishay Dale IHLP® Automotive Inductors, Low DCR Series LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Calculators STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING AT 100 kHz, TYP. MAX. CURRENT 0.25 V, 0 A 25 °C 25 °C DC TYP. (μH) (mΩ) (mΩ) (A) (1) SATURATION CURRENT DC TYP. (A) (2) (A) (3) SRF TYP. (MHz) 0.1 2.6 2.9 26.3 20.5 31.7 312 0.22 3.5 3.9 20.0 8.8 13.4 144 0.33 4.5 5.0 18.5 8.7 13.0 121 0.47 5.4 6.0 15.4 .

IHLP-2020CZ-1A Features

* Shielded construction

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

* Ultra low buzz noise, due to composite construction

* Excellent temperature stability for inductance and saturation

* Excellent D
