IHLP-2525AH-01 Datasheet - Vishay

IHLP-2525AH-01 Inductors

IHLP-2525AH-01 1.0 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLP 2 5 2 5 AHER1R0M0 1 PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES PATENT(S): www.vishay.com/patents This Vishay product is .

www.vishay.com IHLP-2525AH-01 Vishay Dale IHLP® Commercial Inductors, High Saturation Series DESIGN SUPPORT TOOLS click logo to get started Models Available Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % AT DCR DCR RATING SATURATION 100 kHz, TYP. MAX. CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP. (μH) (mΩ) (mΩ) (A) (1) (A) (2) (MHz) 0.1 3.0 3.5 18 40 288 0.15 4.7 5.2 15 38 222 0.22 5.3 5.7 14 26 183 0.33 6.6 7.0.

IHLP-2525AH-01 Features

* Lowest height (1.8 mm) in this package footprint

* Shielded construction

* Excellent DC/DC energy storage up to 5 MHz. Filter inductor applications up to SRF (see Standard Electrical Specifications table)

* Lowest DCR/μH, in this package size

* Handles high

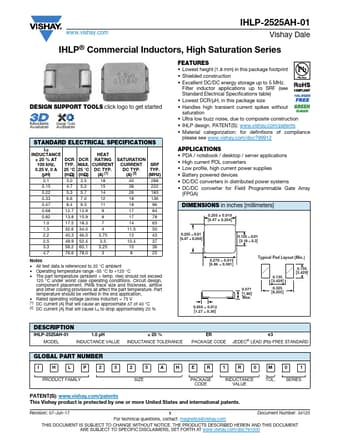

IHLP-2525AH-01 Datasheet (506.01 KB)
