IHLP-2525CZ-1A Inductors

IHLP-2525CZ-1A 1.0 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HL P 2 5 2 5CZER1R0M1 A PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL. SERIES PATENT(S): www.vishay.com/patents This Vishay product is.

www.vishay.com IHLP-2525CZ-1A Vishay Dale IHLP® Automotive Inductors, Low DCR Series DESIGN SUPPORT TOOLS click logo to get started Models Available Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE DCR ± 20 % AT 100 kHz, TYP. 0.25 V, 0 A 25 °C (μH) (m) DCR MAX. 25 °C (m) HEAT RATING CURRENT DC TYP. (A) (1) SATURATION CURRENT DC TYP. (A) (2) 1.0 7.6 8.0 12.5 9.5 2.2 15.7 16.5 9.0 7.0 3.3 24.8 26.0 7.0 6.5 4.7 31.8 33.4 6.0 4.0 6.8 44.6 46..

IHLP-2525CZ-1A Features

* Shielded construction

* Frequency range up to 1.0 MHz

* Lowest DCR/μH, in this package size

* Powered iron composition provides soft saturation

* Handles high transient current spikes without hard saturation

* Ultra low buzz noise, due to composite c

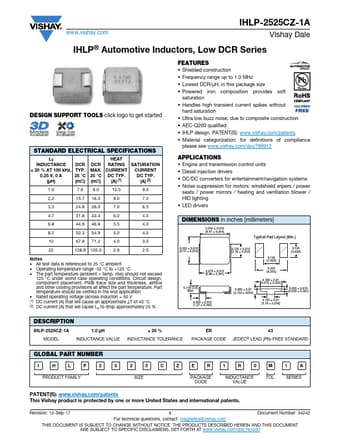

IHLP-2525CZ-1A Datasheet (148.25 KB)
