Part number:
IHLP-2525CZ-5A
Manufacturer:
File Size:
322.97 KB
Description:
Inductors.
Datasheet Details
Part number:
IHLP-2525CZ-5A
Manufacturer:
File Size:
322.97 KB
Description:
Inductors.

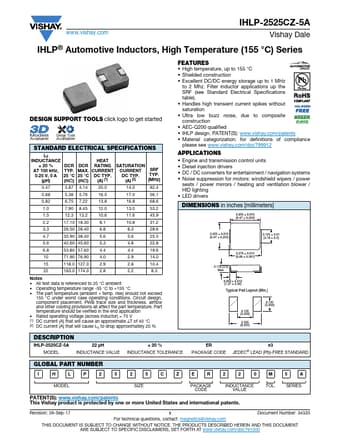

IHLP-2525CZ-5A 22 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HL P 2 5 2 5CZER2 2 0M5 A MODEL SIZE PACKAGE CODE INDUCTANCE VALUE PATENT(S): www.vishay.com/patents This Vishay product is protected by one or

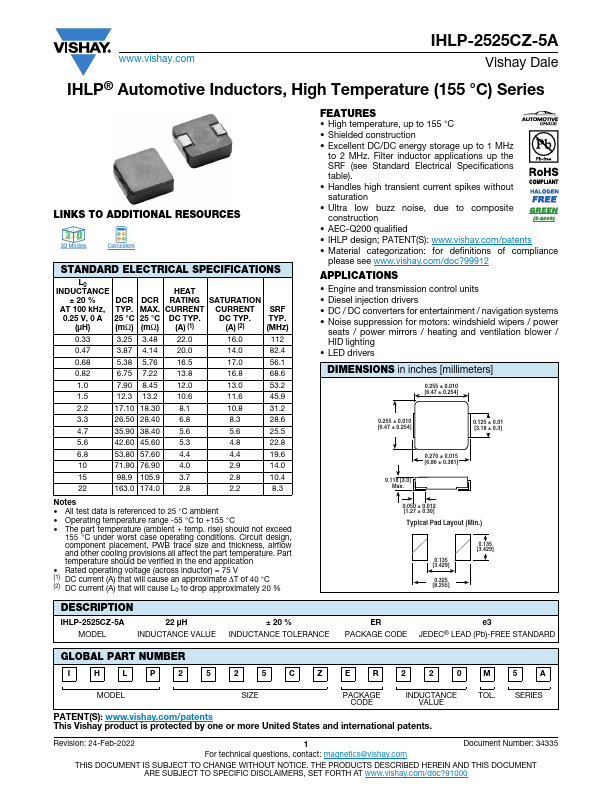

www.vishay.com IHLP-2525CZ-5A Vishay Dale IHLP® Automotive Inductors, High Temperature (155 °C) Series DESIGN SUPPORT TOOLS click logo to get started Models Available Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP.
MAX.
CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP.
DC TYP.
TYP.
(μH) (m) (m) (A) (1) (A) (2) (MHz) 0.47 3.87 4.14 20.0 14.0 82.4 0.68 0.82 5.38 5.76 6.75 7.22 16.5 13.8 17.0 56.

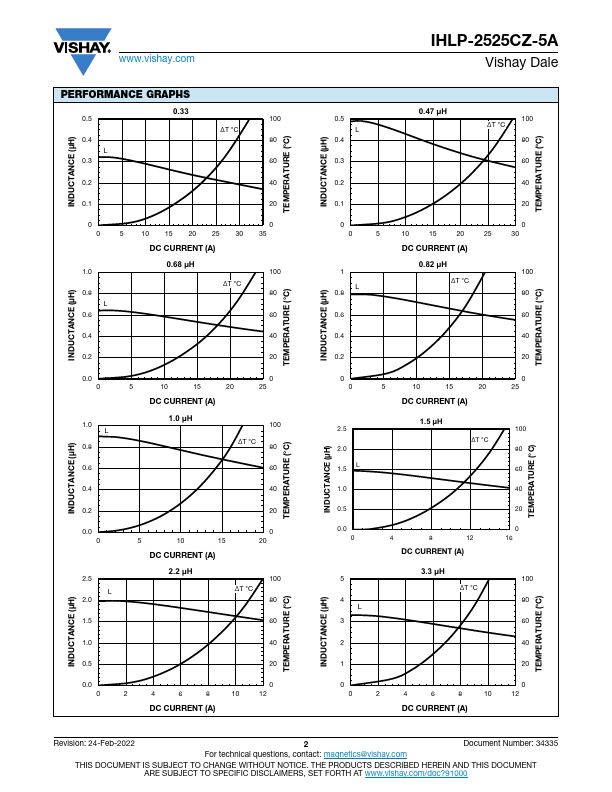

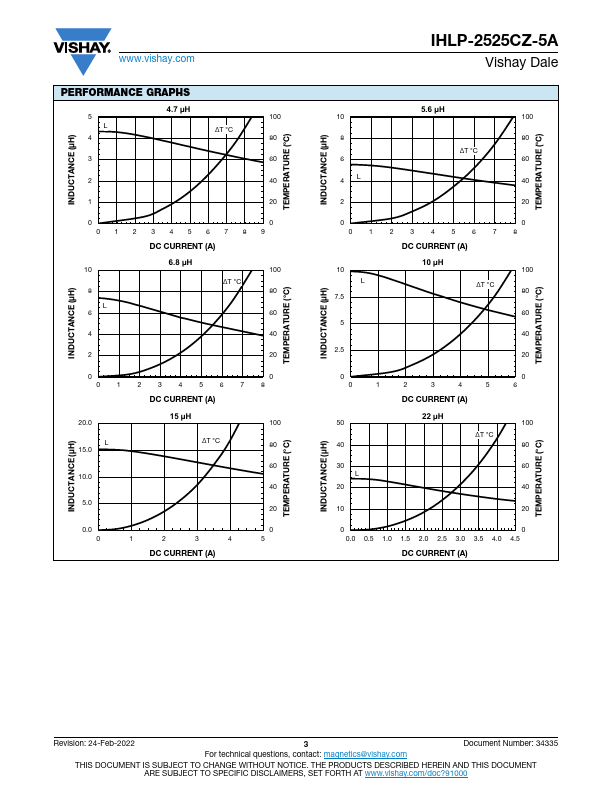

IHLP-2525CZ-5A Features
* High temperature, up to 155 °C
* Shielded construction
* Excellent DC/DC energy storage up to 1 MHz to 2 Mhz. Filter inductor applications up the SRF (see Standard Electrical Specifications table).
* Handles high transient current spikes without saturation
📁 Related Datasheet
📌 All Tags
