IHLP-2525CZ-51 Inductors

IHLP-2525CZ-51 MODEL 22 μH INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HL P 2 5 2 5CZER2 2 0M5 1 MODEL SIZE PACKAGE CODE INDUCTANCE VALUE PATENT(S): www.vishay.com/patents This Vishay product is protected by one or mor.

www.vishay.com IHLP-2525CZ-51 Vishay Dale IHLP® Commercial Inductors, High Temperature (155 °C) Series DESIGN SUPPORT TOOLS click logo to get started Models Available Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP. MAX. CURRENT CURRENT SRF 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. TYP. (μH) (mΩ) (mΩ) (A) (1) (A) (2) (MHz) 0.47 3.87 4.14 20.0 0.68 5.38 5.76 16.5 0.82 6.75 7.22 13.8 1.0 7.90 8.45 12.0 1.5 .

IHLP-2525CZ-51 Features

* High temperature, up to 155 °C

* Shielded construction

* Excellent DC/DC energy storage up to 1 MHz to 2 MHz. Filter inductor applications up the SRF (see Standard Electrical Specifications table).

* Handles high transient current spikes without saturation

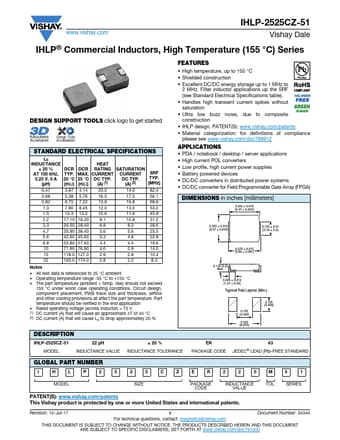

IHLP-2525CZ-51 Datasheet (315.61 KB)
