IRF640PbF, IRF640 Power MOSFET

IRF640PbF Description

IRF640, SiHF640 Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration VGS = 10 V 70 13 39 .
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRF640PbF Features

* 200 0.18
* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC Available RoHS

IRF640PbF Applications

* at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry. TO-220AB G G D S S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free SnPb TO-220AB IRF640PbF SiHF640-E3 IRF64

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRF640PbF, IRF640. Please refer to the document for exact specifications by model.

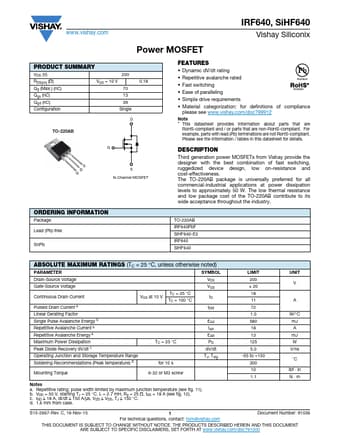

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRF640PbF, IRF640
Manufacturer
Vishay ↗
File Size
128.06 KB
Datasheet
IRF640-Vishay.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRF640PbF, IRF640.
Please refer to the document for exact specifications by model.
