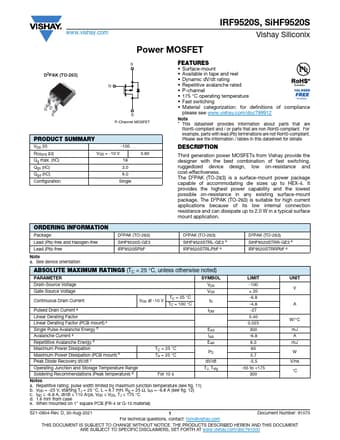

Part number: IRF9520S
Manufacturer: Vishay (https://www.vishay.com/)
File Size: 196.24KB
Download: 📄 Datasheet
Description: Power MOSFET
* Surface-mount
* Available in tape and reel
* Dynamic dV/dt rating
* Repetitive avalanche rated
Available
* P-channel
* 175 °C operating t.
because of its low internal connection resistance and can dissipate up to 2.0 W in a typical surface mount application.
.
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK (TO-263) is a surface-mount power package capable of accommoda.
