IRF9Z30, Power MOSFET

www.vishay.com IRF9Z30 Vishay Siliconix Power MOSFET TO-220AB S G S D G D P-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg max.(nC) Qg.
The power MOSFET technology is the key to Vishay’s advanced line of power MOSFET transistors.

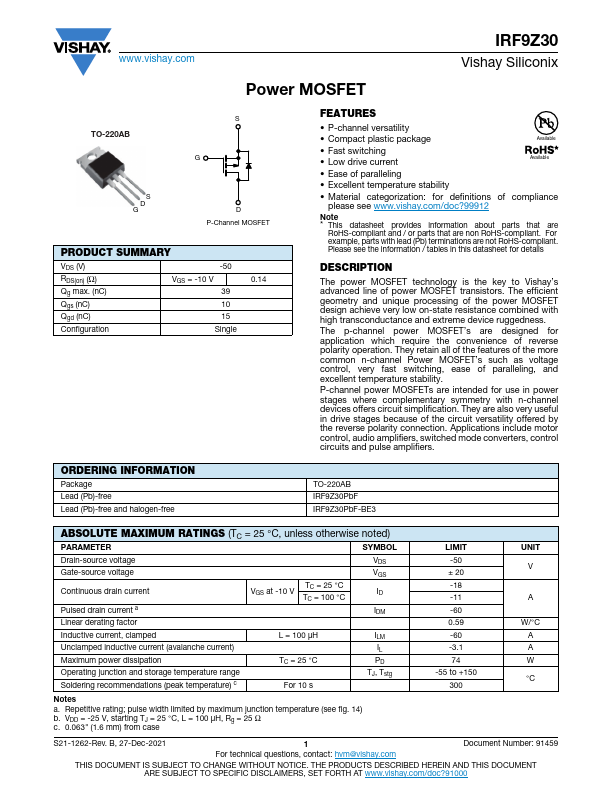

datasheet Preview Page 1 from Datasheet4u.com

IRF9Z30-Vishay.pdf

IRF9Z30 Datasheet Preview — Preview of IRF9Z30 PDF

Datasheet Details

Part number:

IRF9Z30

Manufacturer:

Vishay ↗

File Size:

112.31 KB

Description:

Power MOSFET

Features

* P-channel versatility
* Compact plastic package Available
* Fast switching
* Low drive current Available
* Ease of paralleling
* Excellent temperature stability
* Material categorization: for definitions of compliance please see www. v

Applications

* include motor control, audio amplifiers, switched mode converters, control circuits and pulse amplifiers. ORDERING INFORMATION Package Lead (Pb)-free Lead (Pb)-free and halogen-free TO-220AB IRF9Z30PbF IRF9Z30PbF-BE3 ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL
