IRF9Z14

Power MOSFET

IRF9Z14 Features

* Dynamic dV/dt rating

* Repetitive avalanche rated Available

* P-channel

* 175 °C operating temperature Available

* Fast switching

* Ease of paralleling

* Simple drive requirements

* Material categorization: for definitions of

IRF9Z14 General Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to app.

IRF9Z14 Datasheet (153.62 KB)

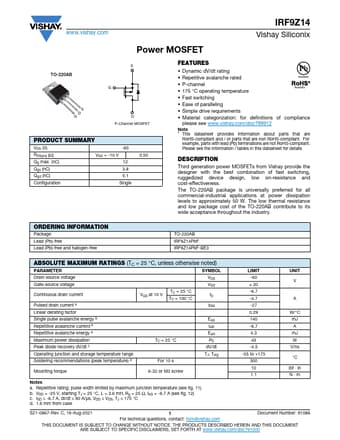

Preview of IRF9Z14 PDF

Datasheet Details

Part number:

IRF9Z14

Manufacturer:

Vishay ↗

File Size:

153.62 KB

Description:

Power mosfet.
www.vishay.com IRF9Z14 Vishay Siliconix Power MOSFET TO-220AB S G S D G D P-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg max. (nC) Qg.
