IRF9Z34NL, P-Channel MOSFET

isc P-Channel MOSFET Transistor *.

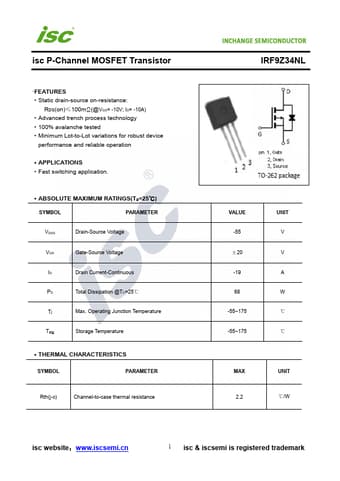

datasheet Preview Page 1 from Datasheet4u.com

IRF9Z34NL-INCHANGE.pdf

IRF9Z34NL Datasheet Preview — Preview of IRF9Z34NL PDF

Datasheet Details

Part number:

IRF9Z34NL

Manufacturer:

INCHANGE

File Size:

225.06 KB

Description:

P-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on)≤100mΩ(@VGS= -10V; ID= -10A)
* Advanced trench process technology
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Fast switching application.
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage ID Drain Current-Continuous PD Total Dissipation @TC=25℃ Tj Max. Operating Junction Temperature Tstg Storage Temperature
* THERMAL CHARACTERIST
