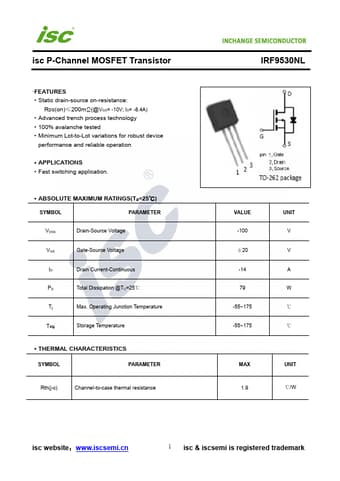

IRF9530NL Datasheet, mosfet equivalent, INCHANGE

IRF9530NL Features

• Mosfet
• Static drain-source on-resistance: RDS(on)≤200mΩ(@VGS= -10V; ID= -8.4A)
• Advanced trench process technology
• 100% avalanche tested
• Minimum Lot-to-Lot v

PDF File Details

Part number:

IRF9530NL

Manufacturer:

INCHANGE

File Size:

224.81kb

Download:

📄 Datasheet

Description:

P-channel mosfet.

IRF9530NL Application

• Applications
• Fast switching application.
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Ga
