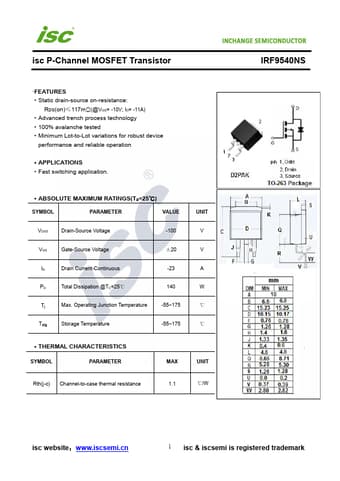

IRF9540NS Datasheet, Mosfet, INCHANGE

IRF9540NS Features

• Mosfet
• Static drain-source on-resistance: RDS(on)≤117mΩ(@VGS= -10V; ID= -11A)
• Advanced trench process technology
• 100% avalanche tested
• Minimum Lot-to-Lot va

PDF File Details

Part number:

IRF9540NS

Manufacturer:

INCHANGE

File Size:

248.71kb

Download:

📄 Datasheet

Description:

P-channel mosfet.

IRF9540NS Application

• Applications
• Fast switching application.
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage
