IRF9530PBF - P-Channel MOSFET

Product Overview

📥 Download Datasheet

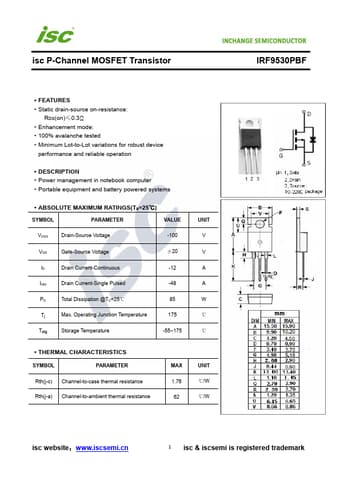

Datasheet preview – IRF9530PBF

Datasheet Details

Part number IRF9530PBF
Manufacturer INCHANGE
File Size 237.05 KB
Description P-Channel MOSFET
Datasheet download datasheet IRF9530PBF Datasheet
Additional preview pages of the IRF9530PBF datasheet.

Product details

Description

Power management in notebook computer Portable equipment and battery powered systems ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage -100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous -12 IDM Drain Current-Single Pulsed -48 PD Total Dissipation @TC=25℃ 85 Tj Max.Operating Junction Temperature 175 Tstg Storage Temperature -55~175 UNIT V V A A W ℃ ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(j-c) Chann

Features
