IRFD9024 Datasheet - Vishay

Power MOSFET

IRFD9024 Features

* Dynamic dV/dt rating

* Repetitive avalanche rated

* For automatic insertion

* End stackable

* P-channel

* Fast switching

* 175 °C operating temperature

* Material categorization: for definitions of compliance please see www.vishay.com

IRFD9024 General Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The 4 pin DIP package is a low cost machine-insertable case style which can be stacked in multiple combinations on standard.

IRFD9024 Datasheet (826.49 KB)

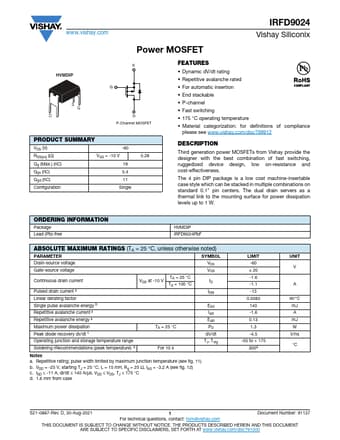

IRFD9024 Datasheet Preview — Preview of IRFD9024 PDF

Datasheet Details

Part number:

IRFD9024

Manufacturer:

Vishay ↗

File Size:

826.49 KB

Description:

Power mosfet.
www.vishay.com IRFD9024 Vishay Siliconix Power MOSFET HVMDIP S G S G D D P-Channel MOSFET PRODUCT SUMMARY VDS (V) -60 RDS(on) (Ω) VGS = -10.
