IRFPC50A - Power MOSFET

IRFPC50A Description

IRFPC50A, SiHFPC50A Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 600 VGS = 10 V.

IRFPC50A Features

* Low Gate Charge Qg Results in Simple Drive Requirement
* Improved Gate, Avalanche and Dynamic dV/dt Ruggedness Available RoHS
* COMPLIANT
* Fully Characterized Capacitance and Avalanche Voltage and Current
* Effective Coss Specified
* Compliant to RoH

IRFPC50A Applications

* Switch Mode Power Supply (SMPS)
* Uninterruptable Power Supply
* High Speed Power Switching TYPICAL SMPS TOPOLOGY
* PFC Boost TO-247AC IRFPC50APbF SiHFPC50A-E3 IRFPC50A SiHFPC50A ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Dr

📥 Download Datasheet

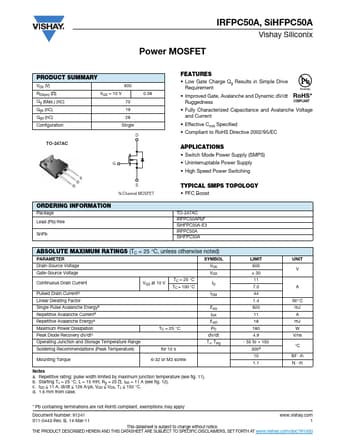

Preview of IRFPC50A PDF
datasheet Preview Page 2 datasheet Preview Page 3
