Power MOSFET

IRLD120 Features

* Dynamic dV/dt rating

* Repetitive avalanche rated

* For automatic insertion

* End stackable

* Logic-level gate drive

* RDS(on) specified at VGS = 4 V and 5 V

* 175 °C operating temperature

* Material categorization: for definitions of

IRLD120 General Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The 4 pin DIP package is a low cost machine-insertable case style which can be stacked in multiple combinations on standard.

IRLD120 Datasheet (807.79 KB)

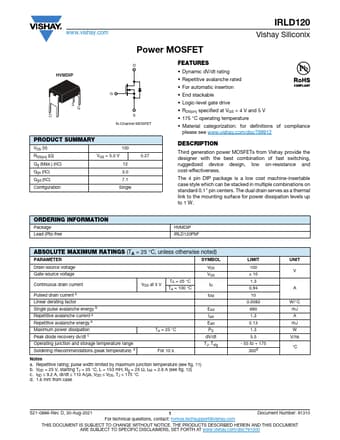

IRLD120 Datasheet Preview — Preview of IRLD120 PDF

Datasheet Details

Part number:

IRLD120

Manufacturer:

Vishay ↗

File Size:

807.79 KB

Description:

Power mosfet.
www.vishay.com IRLD120 Vishay Siliconix Power MOSFET D HVMDIP S G D G S N-Channel MOSFET PRODUCT SUMMARY VDS (V) 100 RDS(on) (Ω) VGS = 5.0 V.
