IRL520S - Power MOSFET

IRL520S Description

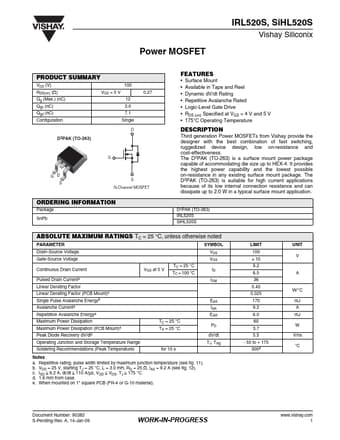

Power MOSFET IRL520S, SiHL520S Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 100 VGS = 5 V 1.
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRL520S Features

* Surface Mount
* Available in Tape and Reel
* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Logic-Level Gate Drive
* RDS (on) Specified at VGS = 4 V and 5 V

IRL520S Applications

* because of its low internal connection resistance and can dissipate up to 2.0 W in a typical surface mount application. D2PAK (TO-263) IRL520S SiHL520S ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current P
