LH1540AABTR Datasheet, Relay, Vishay

LH1540AABTR Features

  • Relay
  • Current limit protection
  • Isolation test voltage 5300 VRMS A1 6 S1
  • Typical RON 22 Ω
  • Load voltage 350 V C2 5 DC
  • Load current 120

PDF File Details

Part number:

LH1540AABTR

Manufacturer:

Vishay ↗

File Size:

204.64kb

Download:

📄 Datasheet

Description:

1 form a solid-state relay. The LH1540 is robust, ideal for telecom and ground fault applications. It is an SPST normally open switch (1 Form A) that replaces el

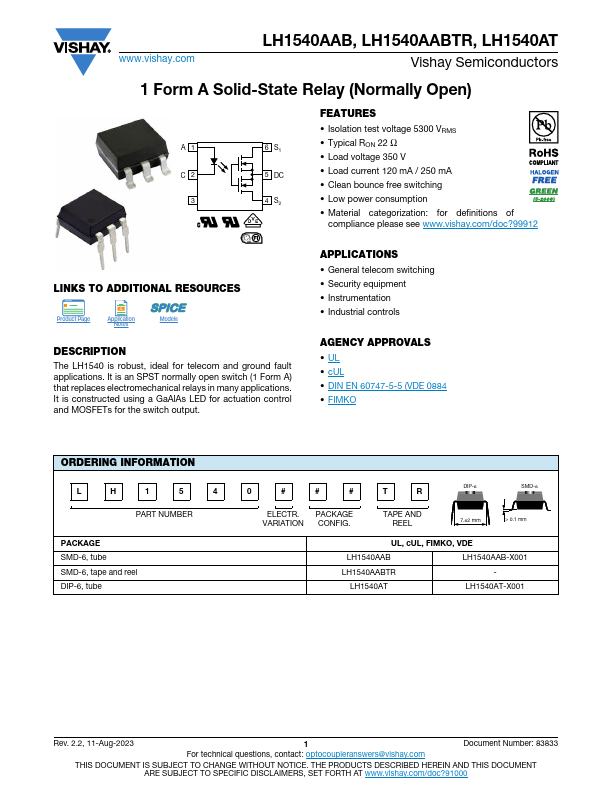

Datasheet Preview: LH1540AABTR 📥 Download PDF (204.64kb)

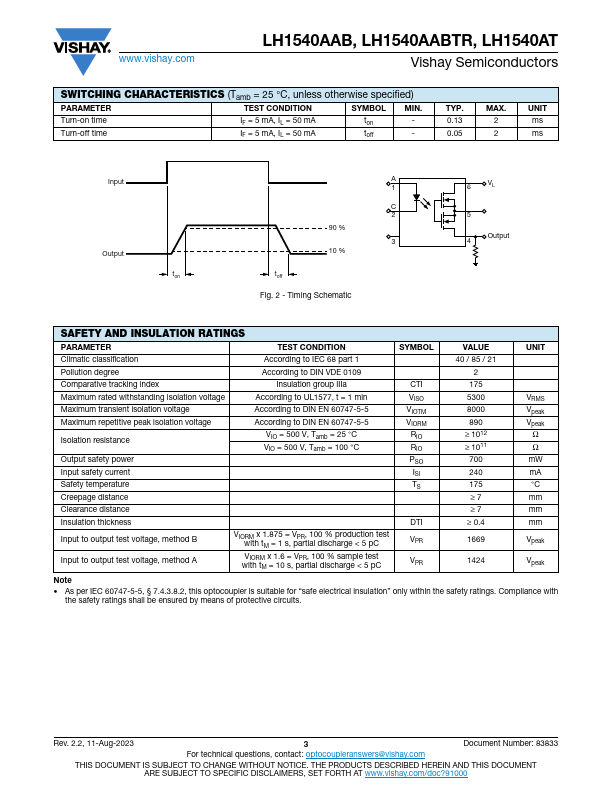

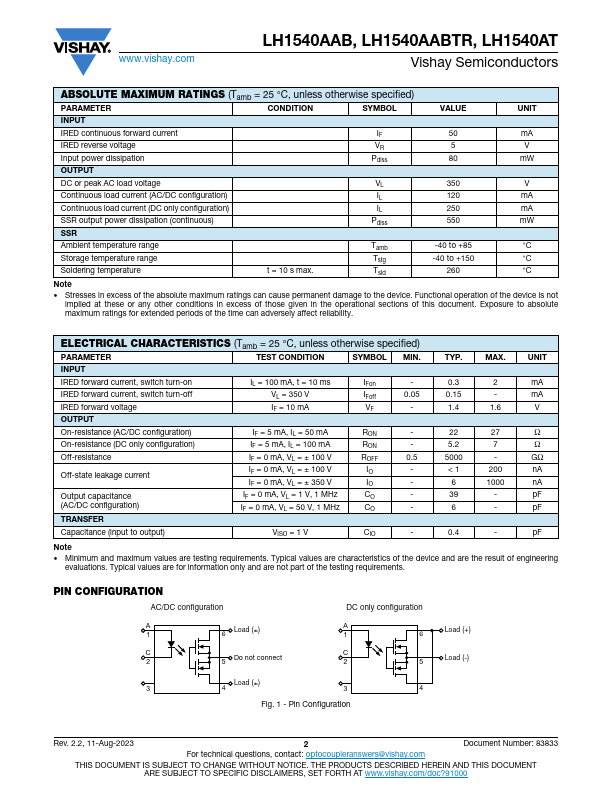

Page 2 of LH1540AABTR Page 3 of LH1540AABTR

LH1540AABTR Application

  • Applications It is an SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a G
