MCL103A Small Signal Schottky Diodes

Vishay

Description

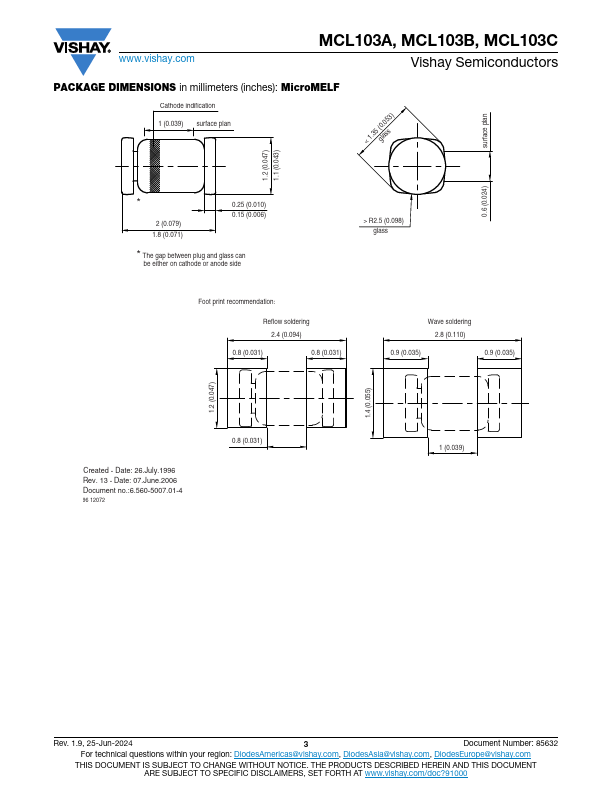

www.vishay.com MCL103A, MCL103B, MCL103C Vishay Semiconductors Small Signal Schottky Diodes MECHANICAL DATA Case: MicroMELF Weight: approx.12 mg C.

📥 Download Datasheet

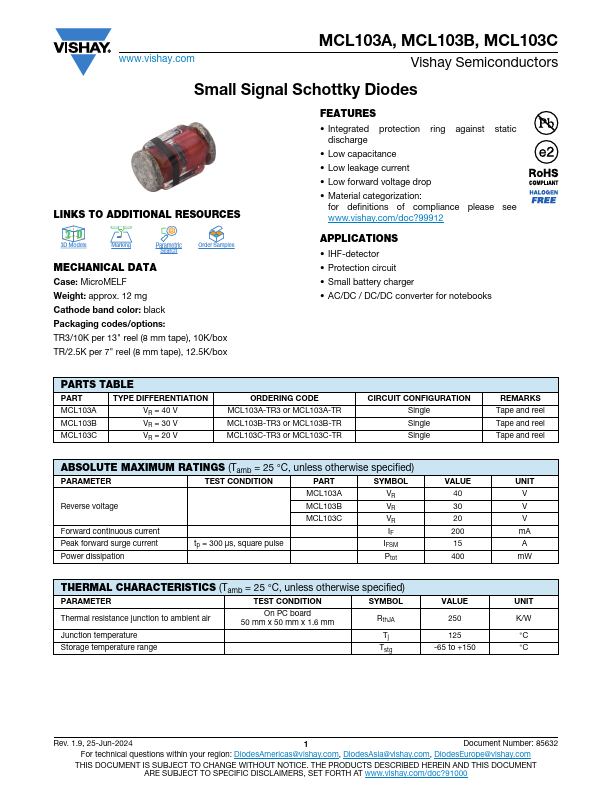

MCL103A Datasheet Preview — Preview of MCL103A PDF

Datasheet Specifications

Part number: MCL103A
Manufacturer: Vishay ↗
File Size: 73.56 KB
Datasheet: MCL103A-Vishay.pdf
Description: Small Signal Schottky Diodes

Features

* Integrated protection ring against static discharge
* Low capacitance
* Low leakage current
* Low forward voltage drop
* AEC-Q101 qualified

Applications

* IHF-detector
* Protection circuit
* Small battery charger
* AC-DC/DC-DC converter for notebooks PARTS TABLE PART TYPE DIFFERENTATION MCL103A MCL103B MCL103C VR = 40 V VR = 30 V VR = 20 V ORDERING CODE MCL103A-TR3 or MCL103A-TR MCL103B-TR3 or MCL103B-TR MCL103C
