MCL4151 Small Signal Fast Switching Diode

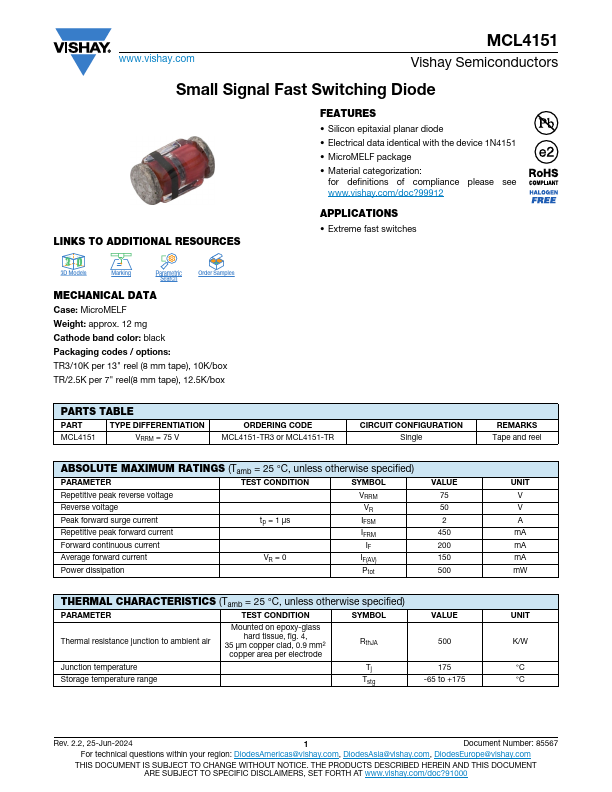

📥 Download Datasheet Datasheet Preview Page 1

Description

www.vishay.com MCL4151 Vishay Semiconductors Small Signal Fast Switching Diode LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric .

📥 Download Datasheet

Preview of MCL4151 PDF

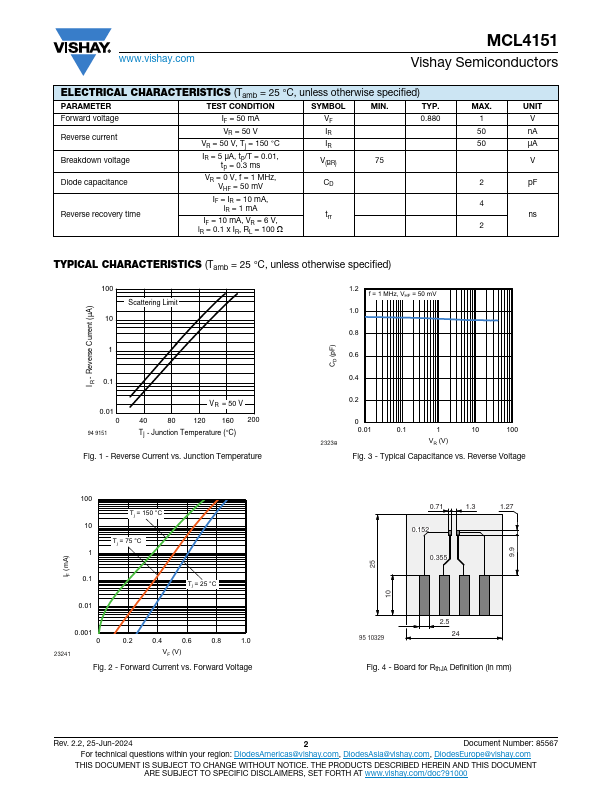

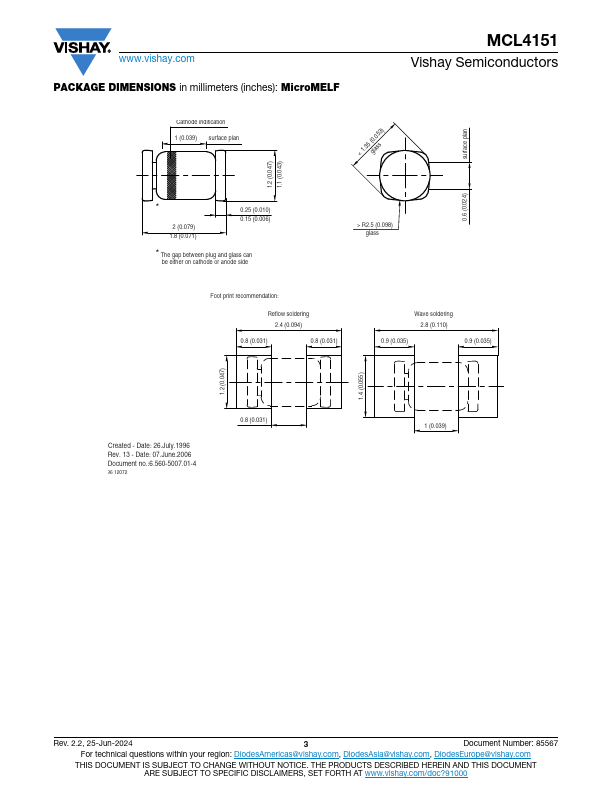

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MCL4151
Manufacturer
Vishay ↗
File Size
109.76 KB
Datasheet
MCL4151-Vishay.pdf
Description
Small Signal Fast Switching Diode

Features

* Silicon epitaxial planar diode
* Electrical data identical with the device 1N4151
* MicroMELF package

Applications

* Extreme fast switches PARTS TABLE PART TYPE DIFFERENTIATION MCL4151 VRRM = 75 V ORDERING CODE MCL4151-TR3 or MCL4151-TR CIRCUIT CONFIGURATION Single REMARKS Tape and reel ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL Repeti
