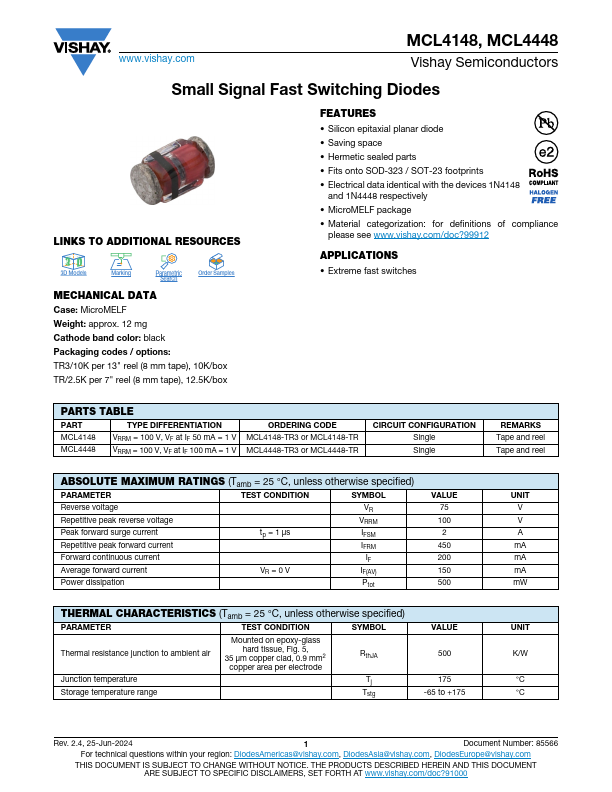

MCL4448, MCL4148 Small Signal Fast Switching Diodes

Vishay

Description

www.vishay.com MCL4148, MCL4448 Vishay Semiconductors Small Signal Fast Switching Diodes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking P.

📥 Download Datasheet

MCL4448 Datasheet Preview — This datasheet PDF includes multiple part numbers: MCL4448, MCL4148. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MCL4448, MCL4148
Manufacturer: Vishay ↗
File Size: 111.13 KB
Datasheet: MCL4148-Vishay.pdf
Description: Small Signal Fast Switching Diodes
Note: This datasheet PDF includes multiple part numbers: MCL4448, MCL4148.
Please refer to the document for exact specifications by model.

Features

* Silicon epitaxial planar diode
* Saving space
* Hermetic sealed parts
* Fits onto SOD-323 / SOT-23 footprints
* Electrical data identical with the devices 1N4148 and 1N4448 respectively
* MicroMELF package
* Material categorization: for defin

Applications

* Extreme fast switches PARTS TABLE PART TYPE DIFFERENTIATION MCL4148 MCL4448 VRRM = 100 V, VF at IF 50 mA = 1 V VRRM = 100 V, VF at IF 100 mA = 1 V ORDERING CODE MCL4148-TR3 or MCL4148-TR MCL4448-TR3 or MCL4448-TR CIRCUIT CONFIGURATION Single Single REMARKS Tape and reel Tape and re
