SUD70090E N-Channel MOSFET

Vishay

SUD70090E Description

www.vishay.com SUD70090E Vishay Siliconix N-Channel 100 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () MAX.0.0089 at VGS = 10 V 100 0.0093 .

SUD70090E Features

* ThunderFET® power MOSFET
* Maximum 175 °C junction temperature
* Qgd / Qgs ratio < 1 optimizes switching characteristics
* 100 % Rg and UIS tested

SUD70090E Applications

* DC/DC converter
* Power tools
* Motor drive switch
* DC/AC inverter
* Battery management D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Cur

📥 Download Datasheet

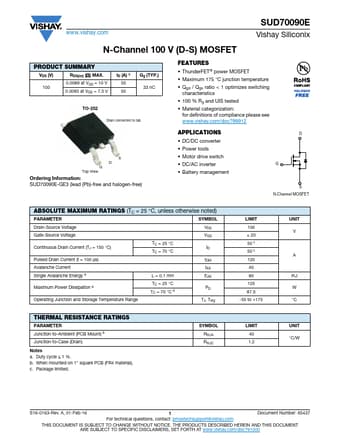

SUD70090E Datasheet Preview — Preview of SUD70090E PDF

Datasheet Details

Part number: SUD70090E
Manufacturer: Vishay ↗
File Size: 213.35 KB
Datasheet: SUD70090E-Vishay.pdf
Description: N-Channel MOSFET
