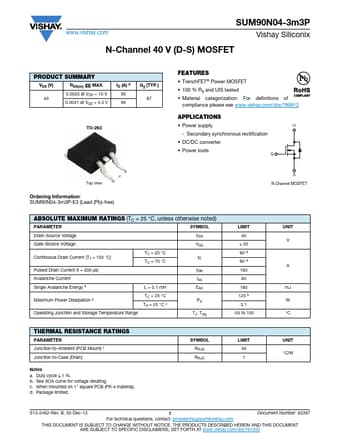

SUM90N04-3m3P Datasheet, Mosfet, Vishay

SUM90N04-3m3P Features

• Mosfet
• TrenchFET® Power MOSFET
• 100 % Rg and UIS tested
• Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS <

PDF File Details

Part number:

SUM90N04-3m3P

Manufacturer:

Vishay ↗

File Size:

177.39kb

Download:

📄 Datasheet

Description:

N-channel 40-v (d-s) mosfet.

SUM90N04-3m3P Application

• Applications
• Power supply - Secondary synchronous rectification
• DC/DC converter
• Power tools G D Top View S D G
